PTO Drivelines & Adapters

35 Series for 2 1/8" O.D. round tube (.120 wall) - Fits Weasler, Rockwell, G&G. Name Value PTO Product Category Yoke PTO Product Sub Category Tube Yoke North American PTO Series 35 Center of Bearing to End of Yoke 4-1/4 Inch Accepts Shaft / Tube Size 2-1/8" Round ( .120 Wall ) Cross & Bearing Cap Diameter 1-1/4 Inch / 31.75mm Cross & Bearing Overall Length 3-7/32 Inch / 81.74mm Brand Weasler

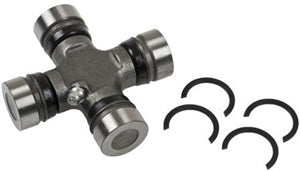

Name Value Cross & Bearing Cap Diameter 1 Inch / 25.40mm Cross and Bearing Journal Length 3-7/32 Inch / 81.74mm North American PTO Series 1800 PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Brand Weasler

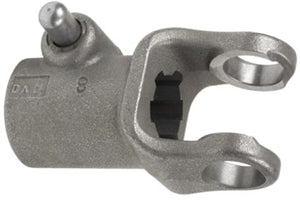

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 35 Tractor Yoke Size 1-3/8" 21 Spline Tractor Yoke Lock Type Quick Disconnect Center of Bearing to End of Yoke 4-3/4 Inch Cross & Bearing Cap Diameter 1-1/4 Inch / 31.75mm Cross & Bearing Overall Length 3-7/32 Inch / 81.74mm Brand Weasler

Weasler Forged 44 Series Tractor PTO Yoke - 1 3/8", 6 spline Quick Disconnect. Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 44 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1-5/16 Inch / 33.35mm Cross & Bearing Overall Length 4 Inch / 101.60mm Brand Weasler

Quick Disconnect Repair Kit for Walterscheid - Retained in Yoke by a Washer. Fits the 1-3/8"-21 & 6 spline QD 2480 & 2580 series   Pin Major Diameter 0.511 inches (12.99mm) Pin Minor Diameter 0.310 inches (7.90mm) Pin Length 1.37 inches (34.74mm) Name Value PTO Product Category Yoke PTO Product Sub Category Yoke Repair Kit Brand Weasler

Name Value Product Type PTO Adapter Attachment Retracting Sleeve QD Female End(s) 1-3/8 Inch 6 Spline Male End(s) 1-3/8 Inch 21 Spline PTO Connection Type Female - Male Extends PTO Length 4-5/16 Inch Overall Length 6-1/2 Inch Brand AgSmart

Can Also Be Used for Series 6 Inner Profile Tubing to provide heavier wall thickness Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Bondioli-Pavesi PTO Series 7N Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 45 Outside Diameter Inch 1.77 Wall Thickness MM 5.4 Wall Thickness Inch 0.21 Cross & Bearing Cap Diameter 1.38 Inch / 34.90mm Cross & Bearing Overall Length 3.70 Inch / 94.00mm Brand Weasler Inside Diameter Inch 1.378

Name Value PTO Product Category Yoke PTO Product Sub Category Shaft Yoke North American PTO Series 14 Yoke Bore Size 1 x 1-1/8 Center of Bearing to End of Yoke 3-3/8 Inch Cross & Bearing Cap Diameter 1-1/8 Inch / 28.58mm Cross & Bearing Overall Length 2-5/8 Inch / 66.68mm Brand Weasler

External Snap Ring in the Yoke Specs: PTO Product Category: Cross and Bearing Kit PTO Product Sub Category: Cross and Bearing Kit - Standard Duty Cross & Bearing Cap Diameter: 1-1/4 Inch / 31.75mm North American PTO Series: 35 Cross & Bearing Overall Length: 3-7/32 Inch / 81.74mm Brand: Tru-Power

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 4 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8" Round Yoke Compressed Overall Length 36.00 Inches Driveshaft Application Rotary Cutter Tractor Yoke Part Number 102-8406 Implement Yoke Part Number 802-8435 Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler

Name Value PTO Product Category Yoke PTO Product Sub Category Tube Yoke Walterscheid Metric PTO Series 2500 Metric Tube Yoke Bore Size 61 MM Star Cross & Bearing Cap Diameter 1.42 Inch / 36.00mm Cross & Bearing Overall Length 3.50 Inch / 88.80mm Brand Weasler

Name Value Product Type PTO Adapter Attachment Set Screw Female End(s) 1-3/8 Inch 21 Spline Male End(s) 1-3/4 Inch 20 Spline PTO Connection Type Female - Male Extends PTO Length 5 Inch Overall Length 7 Inch Max HP Rating 75 Brand AgSmart

Will replace 3201375 and 3201373. Name Value Product Type PTO Adapter Attachment Retracting Sleeve QD Female End(s) 1-3/8 Inch 21 Spline Male End(s) 1-3/8 Inch 6 Spline PTO Connection Type Female - Male Extends PTO Length 5-1/8 Inch Overall Length 7-1/4 Inch Max HP Rating 75 Brand AgSmart

Name Value Product Type PTO Adapter Attachment Push Pin QD Female End(s) 1-3/8 Inch 6 Spline Male End(s) 1-3/8 Inch 21 Spline PTO Connection Type Female - Male Extends PTO Length 4-3/8 Inch Overall Length 6-1/2 Inch Max HP Rating 75

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 6 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Center of Bearing to End of Yoke 3-7/8 Inch Cross & Bearing Cap Diameter 31/32 Inch / 24.61mm Cross & Bearing Overall Length 2-9/32 Inch / 57.94 mm Brand Weasler
