PTO Drivelines & Adapters

Fits North American 6 / 12 / 35 Metric Series ByPy 1 / 2 / 3 / 4 Walterscheid Series 2100 / 2200 / I / 2300 Name Value PTO Product Category Guard PTO Product Sub Category Guard Set PTO Guard Length 48 Inch PTO Guard Type 250 Brand Weasler

For Weasler 970-7000 and Woods 19459 Name Value Outside Diameter 6.20 Inches Inside Diameter 3.90 Inches Thickness .125 Inch Brand AgSmart

Bondioli 247006251, JD W41487, Krone 9561620, Modern 501-0453 Name Value Outside Diameter 5.50 Inches Inside Diameter 3.00 Inches Thickness .125 Inch Brand AgSmart

Retail Bagged 2 Per Package Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 5/16 Inch Retail Display Yes Brand AgSmart Wire Bend Round Usable Length 2-1/4 Inch

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Bondioli-Pavesi PTO Series 5 Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 51.5 Outside Diameter Inch 2.03 Wall Thickness MM 3 Wall Thickness Inch 0.12 Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.13 Inch / 79.40mm Brand Weasler Inside Diameter Inch 1.811

Name Value PTO Product Category Yoke PTO Product Sub Category Tube Yoke Bondioli-Pavesi PTO Series 6 Metric Tube Yoke Bore Size 45 MM Trilobe Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.62 Inch / 92.00mm Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 1 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke Compressed Overall Length 27.00 Inches Driveshaft Application Fertilizer Spreader Tractor Yoke Part Number 102-6106 Implement Yoke Part Number 102-6106 Weasler Brand Series Classic Cross & Bearing Cap Diameter .87 Inch / 22.00mm Cross & Bearing Overall Length 2-1/8 Inch / 54.00mm Brand Weasler

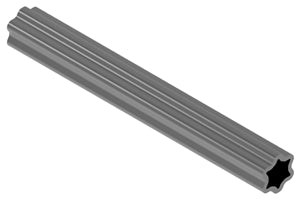

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Star Tube Length Meters 1 Length Inches 39.37 Outside Diameter MM 61 Outside Diameter Inch 2.4 Wall Thickness MM 4.3 Wall Thickness Inch 0.17 CV Category Cat 6 Brand Weasler Inside Diameter Inch 1.929 Walterscheid Metric PTO Series 2400 Walterscheid Metric PTO Series 2500 Walterscheid Metric PTO Series 2600 Walterscheid Metric PTO Series 2580

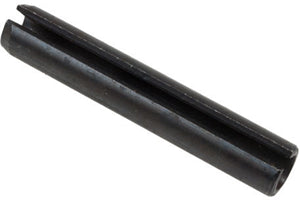

Name Value PTO Product Category Yoke PTO Product Sub Category Roll Pin Diameter - MM 10.00 Diameter - Inch .39 Length - MM 75.00 Length - Inch 2.95 Brand Weasler

Name Value PTO Product Category Yoke PTO Product Sub Category Roll Pin Diameter - MM 10.00 Diameter - Inch .406 Length - MM 80.00 Length - Inch 3.156 Brand Weasler

Repair Kit for 6 Spline Weasler Quick Disconnect Yoke Pin Major Diameter 0.561 inches Pin Length 2.19 inches Name Value PTO Product Category Yoke PTO Product Sub Category Yoke Repair Kit Brand Weasler

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Lemon Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 34.5 Outside Diameter Inch 1.36 Wall Thickness MM 4 Wall Thickness Inch 0.16 Brand Weasler Inside Diameter Inch 1.024 Walterscheid Metric PTO Series 2200 Walterscheid Metric PTO Series 2300 Walterscheid Metric PTO Series I

Uses two 3/8"-24 x 1-3/4" allen head clamp bolts and lock washers (442-8471144103) Name Value Product Type PTO Adapter Attachment Clamp Type Female End(s) 1-3/4 Inch 20 Spline Male End(s) 1-3/8 Inch 21 Spline PTO Connection Type Female - Male Extends PTO Length 4-5/16 Inch Overall Length 8-3/16 Inch Max HP Rating 75 Brand AgSmart

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Lemon Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 48 Outside Diameter Inch 1.89 Wall Thickness MM 3.8 Wall Thickness Inch 0.15 Brand Weasler Inside Diameter Inch 1.575 Walterscheid Metric PTO Series 220 Walterscheid Metric PTO Series 2400

Name Value PTO Product Category Driveshaft PTO Product Sub Category CV Complete Drive Shaft Walterscheid Metric PTO Series 2580 CV Category Cat 6 PTO Tubing Shape Star Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Auto-Lok Driveshaft Implement End 1-3/4"-20 Spline Clamp Yoke Driveshaft Application Flex Wing Mower Compressed Overall Length 55.00 Inches Tractor Yoke Part Number 111-6806 Implement Yoke Part Number 807-7920 Tube or Shaft Size 51.00 MM Shaft Half Shaft - Implement End 971-92414516855 Half Shaft - Tractor End 971-9314516855 Cross & Bearing Cap Diameter 1.38 Inch / 34.90mm Cross & Bearing Overall Length 4.20 Inch / 106.50 mm Brand Weasler
