PTO Drivelines & Adapters

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Bondioli-Pavesi PTO Series 5 Length Meters 1 Length Inches 39.37 Outside Diameter MM 51.5 Outside Diameter Inch 2.03 Wall Thickness MM 3 Wall Thickness Inch 0.12 Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.13 Inch / 79.40mm Brand Weasler Inside Diameter Inch 1.811

Uses two 3/8"-24 x 1-3/4" allen head clamp bolts and lock washers (442-8471144103) Name Value Product Type PTO Adapter Attachment Clamp Type Female End(s) 1-3/4 Inch 20 Spline Male End(s) 1-3/8 Inch 6 Spline PTO Connection Type Female - Male Extends PTO Length 4-5/16 Inch Overall Length 8-3/16 Inch Max HP Rating 75 Brand AgSmart

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 36 Outside Diameter Inch 1.417 Wall Thickness MM 3.2 Wall Thickness Inch 0.134 Brand Weasler Inside Diameter Inch 1.102

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Lemon Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 39.5 Outside Diameter Inch 1.56 Wall Thickness MM 4.5 Wall Thickness Inch 0.18 Brand Weasler Inside Diameter Inch 1.142 Walterscheid Metric PTO Series 220 Walterscheid Metric PTO Series 2400

Quick Disconnect Repair Kit for Bondioli & Pavesi Spring External to Yoke.  Pin Major Diameter 0.545 inches (13.84mm) Pin Minor Diameter 0.317 inches (8.04mm) Pin Length 1.86 inches (47.12mm) Name Value PTO Product Category Yoke PTO Product Sub Category Yoke Repair Kit Brand Weasler

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Bondioli-Pavesi PTO Series 4 Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 36 Outside Diameter Inch 1.417 Wall Thickness MM 3.9 Wall Thickness Inch 0.157 Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler Inside Diameter Inch 1.102

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Star Tube Length Meters 1 Length Inches 39.37 Outside Diameter MM 51 Outside Diameter Inch 2.01 Wall Thickness MM 6 Wall Thickness Inch 0.24 Brand Weasler Inside Diameter Inch 1.042 Walterscheid Metric PTO Series 2400 Walterscheid Metric PTO Series 2500

1 3/4 Inch usable length. Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 1/4 Inch Brand AgSmart Wire Bend Round Usable Length 1-3/4 Inch

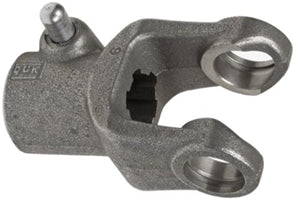

5 Series Quick Disconnect Tractor Yoke - 1 3/8" x 6 spline Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke Bondioli-Pavesi PTO Series 5 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.13 Inch / 79.40mm Brand Weasler

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Bondioli-Pavesi PTO Series 8 Cross & Bearing Cap Diameter 1.38 Inch / 34.90mm Cross & Bearing Overall Length 4.19 Inch / 106.50mm Brand Weasler

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Bondioli-Pavesi PTO Series 3 Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.76 Inch / 70.00mm Walterscheid Metric PTO Series I Brand Weasler

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Bondioli-Pavesi PTO Series 4 Length Meters 1 Length Inches 39.37 Outside Diameter MM 36 Outside Diameter Inch 1.417 Wall Thickness MM 3.9 Wall Thickness Inch 0.157 Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler Inside Diameter Inch 1.102

Will replace 033200092. Name Value Product Type PTO Adapter Attachment Retracting Sleeve QD Female End(s) 1-3/8 Inch 6 Spline Male End(s) 1-3/8 Inch 21 Spline PTO Connection Type Female - Male Extends PTO Length 4-3/4 Inch Overall Length 6-1/2 Inch Max HP Rating 75 Brand AgSmart

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 14 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Center of Bearing to End of Yoke 4-5/16 Inch Cross & Bearing Cap Diameter 1-1/8 Inch / 28.58mm Cross & Bearing Overall Length 2-5/8 Inch / 66.68mm Brand Weasler

Name Value Product Type Overrunning Coupler Attachment Cross Pin Female End(s) 1-3/8 Inch 6 Spline Male End(s) 1-3/8 Inch 6 Spline PTO Connection Type Female - Male Extends PTO Length 3-13/16 Inch Overall Length 6-1/2 Inch Brand AgSmart
