PTO Drivelines & Adapters

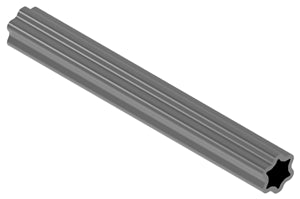

Description: OUTER PROFILE TUBING - STAR SHAPE - WALTERSCHEID 2600 SERIES    39" LENGTH Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Star Tube Walterscheid PTO Series 2600 Length Meters 1 Length Inches 39.37 Outside Diameter MM 71.5 Outside Diameter Inch 2.81 Wall Thickness MM 4.9 Wall Thickness Inch 0.19 UPC 728357307237 Brand Weasler Inside Diameter Inch 2.402   Interchanges:  PM604-7071 A6007071 604-7071

Male spline Lawn & Garden 1" x 15 spline yoke Name Value North American PTO Series 6 PTO Product Category Yoke PTO Product Sub Category Implement Yoke Center of Bearing to End of Yoke 5-3/8 Inch Implement Yoke Bore Shape Hex Cross & Bearing Cap Diameter 31/32 Inch / 24.61mm Cross & Bearing Overall Length 2-9/32 Inch / 57.94 mm Brand Weasler

Description: LN2 PAWL CLUTCH 1 3/8 6 SPLINE Interchanges 023-32322 WYR2-62-06 570-8206 WYR26206 32322 Name Value Brand Weasler

Description: OUTER PROFILE TUBING - LEMON SHAPE - WALTERSCHEID SERIES I AND 2200 / 2300    39" LENGTH Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Lemon Tube Length Meters 1 Length Inches 39.37 Outside Diameter MM 41 Outside Diameter Inch 1.61 Wall Thickness MM 2.9 Wall Thickness Inch 0.114 Brand Weasler Inside Diameter Inch 1.378 Walterscheid Metric PTO Series 2200 Walterscheid Metric PTO Series 2300 Walterscheid Metric PTO Series I

Name Value Brand Weasler

Name Value UPC 728357110448 Brand Weasler

Bearings Supplied With Guard - Must use bearing kit 921-3500 Name Value PTO Product Category Guard PTO Product Sub Category Guard Set CV Category Cat 5 PTO Guard Length 57 Inch Brand Weasler

Bearings Supplied With Guard - Must use bearing kit 921-3500 Name Value PTO Product Category Guard PTO Product Sub Category Guard Set CV Category Cat 5 PTO Guard Length 48 Inch Brand Weasler

Bearings Supplied With Guard - Must use bearing kit 921-1400 Name Value PTO Product Category Guard PTO Product Sub Category Guard Set CV Category Cat 4 PTO Guard Length 67 Inch Brand Weasler

Bearings Supplied With Guard - Must use bearing kit 921-1400 Name Value PTO Product Category Guard PTO Product Sub Category Guard Set CV Category Cat 4 PTO Guard Length 60 Inch Brand Weasler

Implement yoke 50 degree CV 14 Series Name Value UPC 728357403083 Brand Weasler

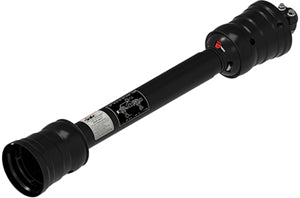

Half Shaft includes COMPLETE SHIELD Name Value PTO Product Category Driveshaft PTO Product Sub Category CV Half Shaft PTO Tubing Shape Splined Shafting North American PTO Series 55 Compressed Overall Length 40.03 Inches CV Category Cat 6 Driveshaft Application Mower Conditioner Tractor Yoke Lock Type Auto-Lok Tractor Yoke Part Number 111-8620 Tractor Yoke Size 1-3/4" 20 Spline Brand Weasler Make Case IH Make Ford_New Holland Model DC132 Model 1431 Type Disc Mower Category1 Service Parts Category2 Service Parts

Half Shaft includes COMPLETE SHIELD Name Value PTO Product Category Driveshaft PTO Product Sub Category CV Half Shaft PTO Tubing Shape Splined Shafting North American PTO Series 55 Compressed Overall Length 37.44 Inches CV Category Cat 6 Driveshaft Application Mower Conditioner Driveshaft Implement End 1-1/2 23 Spline Clamp Yoke Implement Yoke Part Number 857-5523 Brand Weasler Make Case IH Make Ford_New Holland Model DC132 Model 1431 Type Disc Mower Category1 Service Parts Category2 Service Parts

Name Value UPC 728357106373

Name Value North American PTO Series 6 PTO Product Category Yoke PTO Product Sub Category Slip Yoke Center of Bearing to End of Yoke 5-1/2 Inch Accepts Shaft / Tube Size 3/4 x 7/8 Cross & Bearing Cap Diameter 31/32 Inch / 24.61mm Cross & Bearing Overall Length 2-9/32 Inch / 57.94 mm Brand Weasler
