PTO Drivelines & Adapters

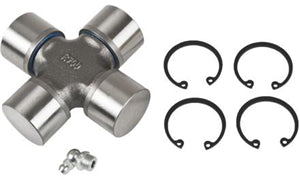

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Bondioli-Pavesi PTO Series 7N Cross & Bearing Cap Diameter 1.38 Inch / 34.90mm Cross & Bearing Overall Length 3.70 Inch / 94.00mm Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 5 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8" 6 Spline Friction Clutch Compressed Overall Length 46.00 Inches Driveshaft Application Rotary Cutter/Tiller Tractor Yoke Part Number 102-6506 Implement Yoke Part Number 563-5606-03 Clutch Torque Rating 8,000 in*pounds Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.13 Inch / 79.40mm Brand Weasler

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Lemon Tube Length Meters 1 Length Inches 39.37 Outside Diameter MM 39.5 Outside Diameter Inch 1.56 Wall Thickness MM 4.5 Wall Thickness Inch 0.18 Brand Weasler Inside Diameter Inch 1.142 Walterscheid Metric PTO Series 220 Walterscheid Metric PTO Series 2400

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Lemon Tube Length Meters 1 Length Inches 39.37 Outside Diameter MM 34.5 Outside Diameter Inch 1.36 Wall Thickness MM 4 Wall Thickness Inch 0.16 Brand Weasler Inside Diameter Inch 1.024 Walterscheid Metric PTO Series 2300 Walterscheid Metric PTO Series I Walterscheid Metric PTO Series 2400 Walterscheid Metric PTO Series 2500

Name Value PTO Product Category Yoke PTO Product Sub Category Tube Yoke Bondioli-Pavesi PTO Series 5 Metric Tube Yoke Bore Size 45 MM Trilobe Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.13 Inch / 79.40mm Brand Weasler

Name Value Bondioli-Pavesi PTO Series 4 PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Compressed Overall Length 40 Inch Driveshaft Application All Purpose Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke PTO Tubing Shape Trilobe Tube Tractor Yoke Lock Type Quick Disconnect Tractor Yoke Size 1-3/8" 6 Spline Brand Tru-Power

Weasler Forged 55 Series Tractor PTO Yoke - 1 3/8", 6 spline Quick Disconnect. Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 55 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1-17/32 Inch / 38.86mm Cross & Bearing Overall Length 4-5/16 Inch / 109.55mm Brand Weasler

Flange for 1350/1410 series irrigation pump driveline Name Value Series 1350/1410 Flange Bore 2-1/4 Inch Flange Keyway 5/8 Inch x 5/16 Inch

Name Value Bondioli-Pavesi PTO Series 4 PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Compressed Overall Length 60 Inch Driveshaft Application All Purpose Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke PTO Tubing Shape Trilobe Tube Tractor Yoke Lock Type Quick Disconnect Tractor Yoke Size 1-3/8" 6 Spline Brand Tru-Power

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Length Meters 1 Length Inches 39.37 Outside Diameter MM 54 Outside Diameter Inch 2.13 Wall Thickness MM 4.5 Wall Thickness Inch 0.18 Brand Weasler Inside Diameter Inch 1.811 Bondioli-Pavesi PTO Series 6 Bondioli-Pavesi PTO Series 7N Bondioli-Pavesi PTO Series 8

2-1/4" usable length. Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 3/8 Inch Brand AgSmart Wire Bend Round Usable Length 2-1/4 Inch

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Lemon Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 41 Outside Diameter Inch 1.61 Wall Thickness MM 2.9 Wall Thickness Inch 0.114 Brand Weasler Inside Diameter Inch 1.378 Walterscheid Metric PTO Series 2200 Walterscheid Metric PTO Series 2300 Walterscheid Metric PTO Series I

2 series Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke Walterscheid Metric PTO Series 2200 Bondioli-Pavesi PTO Series 2 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter .94 Inch / 23.80mm Cross & Bearing Overall Length 2.41 Inch / 61.20mm Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 4 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8" Round Yoke Compressed Overall Length 42.00 Inches Driveshaft Application Rotary Cutter Tractor Yoke Part Number 102-8406 Implement Yoke Part Number 802-8435 Weasler Brand Series Classic Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler

Series 3 Quick Disconnect Tractor Yoke - 1 3/8" x 6 spline Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke Walterscheid Metric PTO Series I Bondioli-Pavesi PTO Series 3 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.76 Inch / 70.00mm Brand Weasler
