PTO Drivelines & Adapters

Fits: Land Pride: RCD1884, RC35120, RCM35120. Replaces Land Pride 21-10405. Name Value Outside Diameter 6 Inch Inside Diameter 2-1/4 Inch Number of Bolt Holes 6 Hole Bolt Hole Size 5/8 Inch Bolt Pattern 4-5/8 Inch Thickness 0.365 Inch Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 6 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8" 6 Spline Friction Clutch Compressed Overall Length 54.00 Inches Driveshaft Application Rotary Cutter/Tiller Tractor Yoke Part Number 102-8606 Implement Yoke Part Number 563-8620-05 Clutch Torque Rating 11,100 in*pounds Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.62 Inch / 92.00mm Brand Weasler

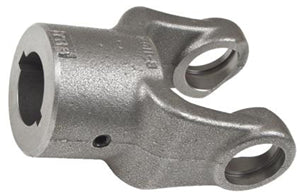

Name Value PTO Product Category Yoke PTO Product Sub Category Implement Yoke North American PTO Series 14 Implement Yoke Bore Shape Round Implement Yoke Bore Size 1-1/4 Inch Center of Bearing to End of Yoke 3-7/8 Inch Keyway Size 1/4 x 5/16 Double Keyway Cross & Bearing Cap Diameter 1-1/8 Inch / 28.58mm Cross & Bearing Overall Length 2-5/8 Inch / 66.68mm Brand Weasler

Name Value PTO Product Category Yoke PTO Product Sub Category Implement Yoke North American PTO Series 6 Implement Yoke Bore Shape Round Implement Yoke Bore Size 1 Inch Center of Bearing to End of Yoke 2-1/2 Inch Keyway Size 3/16 x 1/4 Double Keyway Cross & Bearing Cap Diameter 31/32 Inch / 24.61mm Cross & Bearing Overall Length 2-9/32 Inch / 57.94 mm Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 4 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8" Round Yoke Compressed Overall Length 51.65 Inches Driveshaft Application Rotary Cutter Tractor Yoke Part Number 102-8406 Implement Yoke Part Number 802-8435 Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler

Universal friction clutch assembly, 2 disc, 8000 inch-pound rated. . Inside diameter 1-3/8" X 6 spline. Outside diameter 1-3/8" X 6 spline quick disconnect coupler. Name Value Brand Weasler

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Bondioli-Pavesi PTO Series 2 Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 29 Outside Diameter Inch 1.142 Wall Thickness MM 4.1 Wall Thickness Inch 0.134 Cross & Bearing Cap Diameter .94 Inch / 23.80mm Cross & Bearing Overall Length 2.41 Inch / 61.20mm Brand Weasler Inside Diameter Inch 0.827

Name Value Bondioli-Pavesi PTO Series 4 PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Compressed Overall Length 60 Inch Driveshaft Application All Purpose Driveshaft Implement End 1-3/8" Round Yoke PTO Tubing Shape Trilobe Tube Tractor Yoke Lock Type Quick Disconnect Tractor Yoke Size 1-3/8" 6 Spline Brand Tru-Power

Pin Major Diameter 0.554 inches Pin Minor Diameter 0.314 inches Pin Length 2.76 inches Name Value Product Type Pin Kit Length 2-3/4 Inch Diameter 17/32 Inch

Name Value Bondioli-Pavesi PTO Series 6 PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Compressed Overall Length 60 Inch Driveshaft Application All Purpose Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke PTO Tubing Shape Trilobe Tube Tractor Yoke Lock Type Quick Disconnect Tractor Yoke Size 1-3/8" 6 Spline Brand Tru-Power

Name Value PTO Product Category Yoke PTO Product Sub Category Yoke Repair Kit Brand Weasler

Name Value PTO Product Category Yoke PTO Product Sub Category Implement Yoke North American PTO Series 35 Implement Yoke Bore Shape Spline Implement Yoke Bore Size 1-3/8 Inch - 6 Spline Center of Bearing to End of Yoke 3-7/8 Inch Cross & Bearing Cap Diameter 1-1/4 Inch / 31.75mm Cross & Bearing Overall Length 3-7/32 Inch / 81.74mm Brand Weasler

2-1/4" usable length. Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 3/8 Inch Brand AgSmart Wire Bend Square Usable Length 2-1/4 Inch

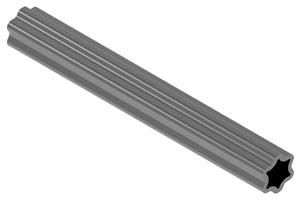

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Star Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 61 Outside Diameter Inch 2.4 Wall Thickness MM 4.3 Wall Thickness Inch 0.17 CV Category Cat 6 Brand Weasler Inside Diameter Inch 1.929 Walterscheid Metric PTO Series 2400 Walterscheid Metric PTO Series 2500 Walterscheid Metric PTO Series 2600 Walterscheid Metric PTO Series 2580

Half Shafts =  9214516855 and 9314616855 Name Value PTO Product Category Driveshaft PTO Product Sub Category CV Complete Drive Shaft Walterscheid Metric PTO Series 2580 CV Category Cat 6 PTO Tubing Shape Star Tube Tractor Yoke Size 1-3/8" 21 Spline Tractor Yoke Lock Type Auto-Lok Driveshaft Implement End 1-3/4"-20 Spline Clamp Yoke Driveshaft Application Flex Wing Mower Compressed Overall Length 55.00 Inches Tractor Yoke Part Number 111-6821 Implement Yoke Part Number 807-7920 Tube or Shaft Size 51.00 MM Shaft Half Shaft - Implement End 971-9214516855 Half Shaft - Tractor End 971-9314616855 Cross & Bearing Cap Diameter 1.38 Inch / 34.90mm Cross & Bearing Overall Length 4.20 Inch / 106.50 mm Brand Weasler
