PTO Drivelines & Adapters

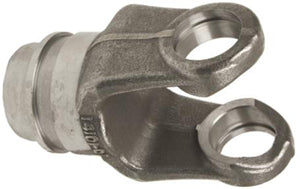

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 35 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Safety Slide Lock Center of Bearing to End of Yoke 5-1/4 Inch Cross & Bearing Cap Diameter 1-1/4 Inch / 31.75mm Cross & Bearing Overall Length 3-7/32 Inch / 81.74mm Brand Weasler

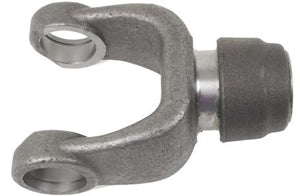

Name Value PTO Product Category Yoke PTO Product Sub Category Tube Yoke Bondioli-Pavesi PTO Series 3 Metric Tube Yoke Bore Size 36 MM Trilobe Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.76 Inch / 70.00mm Brand Weasler

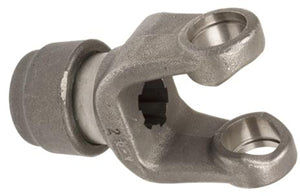

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 55 Tractor Yoke Size 1-3/8" 21 Spline Tractor Yoke Lock Type Safety Slide Lock Cross & Bearing Cap Diameter 1-17/32 Inch / 38.86mm Cross & Bearing Overall Length 4-5/16 Inch / 109.55mm Brand Weasler

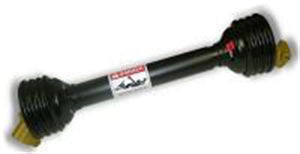

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 4 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke Compressed Overall Length 44.00 Inches Driveshaft Application All Purpose Tractor Yoke Part Number 102-8406 Implement Yoke Part Number 102-8406 Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 6 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke Compressed Overall Length 57.00 Inches Driveshaft Application All Purpose Tractor Yoke Part Number 102-8606 Implement Yoke Part Number 102-8606 Weasler Brand Series Classic Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.62 Inch / 92.00mm Brand Weasler

14 Series Tube Weld Yoke for 2" O.D. round tube (.083 wall). Name Value PTO Product Category Yoke PTO Product Sub Category Tube Yoke North American PTO Series 14 Center of Bearing to End of Yoke 3-7/8 Inch Accepts Shaft / Tube Size 2" Round ( .083 Wall ) Cross & Bearing Cap Diameter 1-1/8 Inch / 28.58mm Cross & Bearing Overall Length 2-5/8 Inch / 66.68mm Brand Weasler

Weasler Forged 55 Series Tractor PTO Yoke - 1 3/8", 21 spline Quick Disconnect. Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 55 Tractor Yoke Size 1-3/8" 21 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1-17/32 Inch / 38.86mm Cross & Bearing Overall Length 4-5/16 Inch / 109.55mm Brand Weasler

Name Value Product Type PTO Adapter Attachment Set Screw Female End(s) 1-3/8 Inch 6 Spline Male End(s) 1-3/8 Inch 6 Spline PTO Connection Type Female - Male Extends PTO Length 2-15/16 Inch Overall Length 2-15/16 Inch Brand AgSmart

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 63 Outside Diameter Inch 2.48 Wall Thickness MM 4.1 Wall Thickness Inch 0.161 Brand Weasler Inside Diameter Inch 2.165 Bondioli-Pavesi PTO Series 8 Bondioli-Pavesi PTO Series 9

Name Value PTO Product Category Yoke PTO Product Sub Category Implement Yoke North American PTO Series 35 Implement Yoke Bore Shape Round Implement Yoke Bore Size 1-1/2 Inch Center of Bearing to End of Yoke 4-1/4 Inch Keyway Size 3/8 Inch Cross & Bearing Cap Diameter 1-1/4 Inch / 31.75mm Cross & Bearing Overall Length 3-7/32 Inch / 81.74mm Brand Weasler

Name Value Bondioli-Pavesi PTO Series 4 Weasler Brand Series Standard Compressed Overall Length 53.00 Inches Driveshaft Application Post Hole Digger Driveshaft Implement End 1-1/4" Round Yoke Implement Yoke Part Number 802-8420 PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft PTO Tubing Shape Trilobe Tube Tractor Yoke Lock Type Safety Slide Lock Tractor Yoke Part Number 101-8406 Tractor Yoke Size 1-3/8" 6 Spline Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler

Quick Disconnect Tractor Yoke - 1 3/4" x 20 spline Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke Walterscheid Metric PTO Series 2500 Tractor Yoke Size 1-3/4" 20 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1.42 Inch / 36.00mm Cross & Bearing Overall Length 3.50 Inch / 88.80mm Brand Weasler

Fits Rhino Rotary Cutters TW60, TW72, TW84 Replaces Rhino OEM Numbers 058-1060-003, 36F43, 058106003 Inside Diameter: 3.858" Outside Diameter: 7" Name Value Outside Diameter 7.00 Inches Inside Diameter 3.813 Inches Thickness .125 Inch Brand AgSmart

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Square Shaft Length Inches 72.00 Outside Diameter Inch 1 x 1-1/8 Inside Diameter Solid Shaft Brand Weasler North American PTO Series 12 North American PTO Series 14

Name Value Product Type Spline Bushing Female End(s) 7/8 Inch 13 Spline PTO Connection Type Female Overall Length 2-1/4 Inch Outside Diameter 1-1/2 Inch
