PTO Drivelines & Adapters

Weasler Forged 55 Series Tractor PTO Yoke - 1 3/4", 20 spline Quick Disconnect. Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 55 Tractor Yoke Size 1-3/4" 20 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1-17/32 Inch / 38.86mm Cross & Bearing Overall Length 4-5/16 Inch / 109.55mm Brand Weasler

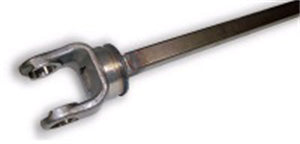

Name Value PTO Product Category Driveshaft PTO Product Sub Category Yoke and Shaft North American PTO Series 14 PTO Tubing Shape Rectangle Shaft Shaft Size 1 x 1-1/8 Shaft Shaft Length from Center of Bearing 35.62 Inch Cross & Bearing Cap Diameter 1-1/8 Inch / 28.58mm Cross & Bearing Overall Length 2-5/8 Inch / 66.68mm Brand Weasler

2400,2480 SERIES Name Value PTO Product Category Yoke PTO Product Sub Category Tube Yoke Walterscheid Metric PTO Series 2400 Metric Tube Yoke Bore Size 48 MM Lemon Cross & Bearing Cap Diameter 1.26 Inch / 32.00mm Cross & Bearing Overall Length 3 Inch / 76.00mm Brand Weasler

For BMB 8053, Caldwell 8323, Ford 222042, Hardee C57, Howse HOTL12, Massey 1045320M1, Mohawk 12-29005, Servis-Rhino 073-1070-003, Sidewinder 15436, Terrain King 748833, Vermeer 4976-003-1 Name Value Outside Diameter 6.50 Inches Inside Diameter 2.63 Inches Thickness .135 Inch Brand AgSmart

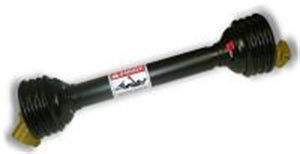

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 6 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8" 6 Spline With Over-Running Clutch Compressed Overall Length 39.00 Inches Driveshaft Application Disc Mower Tractor Yoke Part Number 102-8606 Implement Yoke Part Number 580-8606 Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.62 Inch / 92.00mm Brand Weasler

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 14 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Spring-Lok Center of Bearing to End of Yoke 4-5/16 Inch Cross & Bearing Cap Diameter 1-1/8 Inch / 28.58mm Cross & Bearing Overall Length 2-5/8 Inch / 66.68mm Brand Weasler

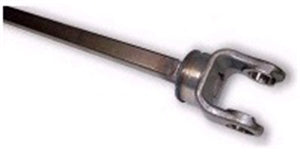

Name Value PTO Product Category Driveshaft PTO Product Sub Category Yoke and Shaft North American PTO Series 35 PTO Tubing Shape Square Shaft Shaft Size 1-3/16 Shaft Shaft Length from Center of Bearing 33.19 Inch Cross & Bearing Cap Diameter 1-1/4 Inch / 31.75mm Cross & Bearing Overall Length 3-7/32 Inch / 81.74mm Brand Weasler

Name Value PTO Product Category Guard PTO Product Sub Category Guard Repair Kit PTO Guard Type 250 Inner Shield Bearing ID 47.40 MM ( 1.87" ) Inner Shield Bearing OD 71.40 MM ( 2.81" ) Outer Shield Bearing ID 53.40 MM ( 2.10" ) Outer Shield Bearing OD 71.40 MM ( 2.81" ) Brand Weasler

Safety Slide Lock. Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke Walterscheid Metric PTO Series 220 Bondioli-Pavesi PTO Series 6 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Safety Slide Lock Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.62 Inch / 92.00mm Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 4 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke Compressed Overall Length 48.18 Inches Driveshaft Application All Purpose Tractor Yoke Part Number 102-8406 Implement Yoke Part Number 102-8406 Weasler Brand Series Classic Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler

Name Value Bondioli-Pavesi PTO Series 6 PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Compressed Overall Length 40 Inch Driveshaft Application All Purpose Driveshaft Implement End 1-3/8"- 6 Spline QD Yoke PTO Tubing Shape Trilobe Tube Tractor Yoke Lock Type Quick Disconnect Tractor Yoke Size 1-3/8" 6 Spline Brand Tru-Power

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke Walterscheid Metric PTO Series 2400 Tractor Yoke Size 1-3/8" 21 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1.26 Inch / 32.00mm Cross & Bearing Overall Length 3 Inch / 76.00mm Brand Weasler

Name Value PTO Product Category Driveshaft PTO Product Sub Category Complete Drive Shaft Bondioli-Pavesi PTO Series 4 PTO Tubing Shape Trilobe Tube Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Driveshaft Implement End 1-3/8" 6 Spline Friction Clutch Compressed Overall Length 38.00 Inches Driveshaft Application Rotary Cutter/Tiller Tractor Yoke Part Number 102-8406 Implement Yoke Part Number 563-8406-03 Clutch Torque Rating 8,000 in*pounds Cross & Bearing Cap Diameter 1.06 Inch / 27.0mm Cross & Bearing Overall Length 2.94 Inch / 74.60mm Brand Weasler

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Walterscheid Metric PTO Series 2100 Cross & Bearing Cap Diameter .87 Inch / 22.00mm Cross & Bearing Overall Length 2.16 Inch / 54.80mm Brand Weasler

Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke North American PTO Series 55 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Safety Slide Lock Cross & Bearing Cap Diameter 1-17/32 Inch / 38.86mm Cross & Bearing Overall Length 4-5/16 Inch / 109.55mm Brand Weasler
