PTO Drivelines & Adapters

AgMate 31593    Bondioli 247000054    Bush Hog 64651 and 91561   Hardee C1894   Modern 501-0552   Walterscheid   168556    Weasler 970-4140    TISCO BFD13 Name Value Outside Diameter 5.50 Inches Inside Diameter 3.375 Inches Thickness .125 Inch Brand AgSmart

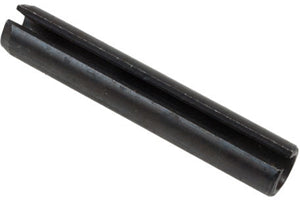

Name Value PTO Product Category Yoke PTO Product Sub Category Roll Pin Diameter - MM 8.00 Diameter - Inch .31 Length - MM 60.00 Length - Inch 2.36 Brand Weasler

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Walterscheid Metric PTO Series 2200 Bondioli-Pavesi PTO Series 2 Cross & Bearing Cap Diameter .94 Inch / 23.80mm Cross & Bearing Overall Length 2.41 Inch / 61.20mm Brand Weasler

Series 6 Quick Disconnect Tractor Yoke - 1 3/8" x 6 spline Name Value PTO Product Category Yoke PTO Product Sub Category Tractor Yoke Walterscheid Metric PTO Series 220 Bondioli-Pavesi PTO Series 6 Tractor Yoke Size 1-3/8" 6 Spline Tractor Yoke Lock Type Quick Disconnect Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.62 Inch / 92.00mm Brand Weasler

HP (80 Diesel Engine) (83 Gas Engine) (95 Elect Motor) Name Value Length 36 Inch Max HP Rating 100 Series 1410

2 1/4 Inch usable length Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 5/16 Inch Brand AgSmart Wire Bend Square Usable Length 2-1/4 Inch

5/16 Inch X 2-1/4 Inch useable length PTO lock pin. 50 pins per bag. 873-B266 is available for retail display packaging.  Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 5/16 Inch Brand AgSmart Wire Bend Round Usable Length 2-1/4 Inch

Internal Snap Ring in the Bushing Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty North American PTO Series 6 Cross & Bearing Cap Diameter 31/32 Inch / 24.61mm Cross & Bearing Overall Length 2-9/32 Inch / 57.94 mm Brand Weasler

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 54 Outside Diameter Inch 2.13 Wall Thickness MM 4.5 Wall Thickness Inch 0.18 Brand Weasler Inside Diameter Inch 1.811 Bondioli-Pavesi PTO Series 6 Bondioli-Pavesi PTO Series 7N Bondioli-Pavesi PTO Series 8

2-1/4" usable length Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 1/4 Inch Brand AgSmart Wire Bend Square Usable Length 2-1/4 Inch

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Bondioli-Pavesi PTO Series 5 Cross & Bearing Cap Diameter 1.19 Inch / 30.20mm Cross & Bearing Overall Length 3.13 Inch / 79.40mm Brand Weasler

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Walterscheid Metric PTO Series 2400 Cross & Bearing Cap Diameter 1.26 Inch / 32.00mm Cross & Bearing Overall Length 3 Inch / 76.00mm Brand Weasler

Name Value PTO Product Category Shafting and Tubing PTO Product Sub Category Trilobe Tube Length Meters 1.5 Length Inches 59.06 Outside Diameter MM 45 Outside Diameter Inch 1.77 Wall Thickness MM 3.9 Wall Thickness Inch 0.15 Brand Weasler Inside Diameter Inch 1.457 Bondioli-Pavesi PTO Series 5 Bondioli-Pavesi PTO Series 6

2-1/4 Inch usable length. Name Value Product Category Pins Product Type PTO Lock Pin Pin Diameter 1/4 Inch Brand AgSmart Wire Bend Round Usable Length 2-1/4 Inch

Metric Cross and Bearing Kit - Type 2 (Snap Ring Grooves in Yokes) Name Value PTO Product Category Cross and Bearing Kit PTO Product Sub Category Cross and Bearing Kit - Standard Duty Walterscheid Metric PTO Series 2500 Cross & Bearing Cap Diameter 1.42 Inch / 36.00mm Cross & Bearing Overall Length 3.50 Inch / 88.80mm Brand Weasler
