Case-IH

Models/Applications: 443, 643, 843, 1243, 444, 644, 844, 1244, 843, 863, 883, 844, 864, 884, 943, 963, 983, 944, 964, 984, 1063, 1083, 1064, 1084, 443, 643, 843, 1243, 444, 644, 1244, 2206, 2208, 2212, 3206, 3208, 3212, 3406, 3408, 3412, 974, 493, 494, 693, 694, 893, 894, 1293, 1294 OEM Brand: IH, JD, NH Reference Number(s): AN102448, 587300, 745023, 745023, 176283C91, 84549635, 86583947, 87034967 Material: Non-greaseable idler sprocket - 8 teeth - CA555 Chain Other Notes: 2 idler sprockets required per row

Corn Head Brand: IH Corn Head Models: 2206, 2208, 2212 Combine Brand: IH Combine Models: 7010, 8010, 7120, 8120, 9120, 7230, 8230, 9230, 7240, 8240, 9240 Installation Notes: This adapter mounts into the feeder house section of the corn head. The bottom wedge bolts on using the existing holes. The top wedge plates will require you to drill, and tap, holes to secure those wedge plates into place. Installation instructions are provided upon the delivery of this kit.  Proudly Made In The USA!

Models/Applications: 2200 Series, 996 Series, Clarke Knife Roll Replaces: 86977538 The 2200 Series Case IH Stalk Roll Knife (Aftermarket - Model 86977538) features an advanced "W-shape" design that excels in both crimping and cutting stalks (every 4-6"). This unique shape not only ensures precise slicing but also effectively crimps the stalks, causing them to lay down where they're cut. This reduces the risk of stalks blowing around the field and down the road, which can be a common issue with less effective residue management. By creating a more "stable" residue, this knife is especially beneficial for no-till farmers, as it promotes a more nutritious and manageable field environment and prepares the soil for optimal planting conditions. Durable and reliable, the 2200 Series Stalk Roll Knife by VH Mfg (Polytin) is essential for enhancing harvesting performance and supporting effective residue management strategies.

Models/Applications: 1000 Series, 1043, 1044, 1054, 1063, 1064, 1083, 1084, 3206, 3208, 3212, 3406, 3408, 3412  Replaces: 1989222C2

Models/Applications: 1000 Series, 1063, 1083, 1064, 1084  Replaces: 1327208C1

Models/Applications: 800 Series, 900 Series, 1000, 843, 844, 863, 864, 883, 884, 943, 944, 963, 964, 983, 984, 1043, 1044, 1063, 1064, 1083, 1084, 443, 444, 643, 644, 843, 844, 1243, 1244  Replaces: 199097C3

Models/Applications:900 Series, 1000 Series, 943, 963, 983, 1043, 1063, 1064, 1083, 1084 OEM Brand: Case IH® Reference Number(s): 176233C94 Material: Poly Color: OEM Red Proudly Made In The USA!

Models/Applications:800 Series, 900 Series, 1000 Series, 843, 844, 863, 864, 883, 884, 943, 944, 963, 964, 1063, 1064, 1083, 1084 Replaces:199491C1

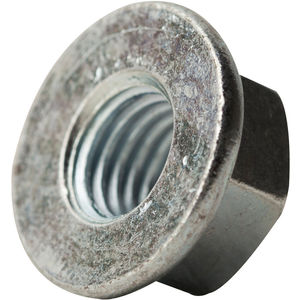

CNH 86512497-N is a hex flange nut (M12 × 1.75, 12 mm height) used across Case IH and New Holland equipment. The integrated flange acts like a built-in washer to spread load and resist loosening in high-vibration assemblies.  Features Genuine-spec replacement for CNH 86512497 Hex flange design distributes clamping load and reduces surface damage Metric thread: M12 × 1.75 (standard pitch) Specs Part number: 86512497 Type: Hex flange nut Thread: M12 × 1.75 Overall height: 12 mm Quantity: 1 nut (each)

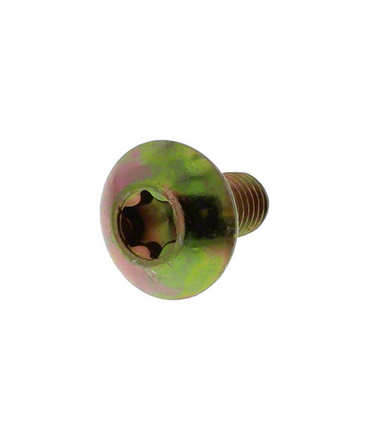

This OEM-spec CNH bolt (PN 86615134-N) is a Torx head, M12 × 1.75 × 25 mm, Class 10.9 fastener used across a wide range of Case IH and New Holland equipment. The high-strength 10.9 rating delivers reliable clamping force in high-vibration areas like driveline covers, guards, and general hardware locations. Sold individually. Features Genuine-spec replacement for CNH 86615134 or Z-1225-TX Torx head for secure drive and reduced cam-out Class 10.9 high-strength steel for demanding applications M12 × 1.75 pitch × 25 mm length Common across Case IH & New Holland combines and other equipment Specs Head type: Torx Thread size: M12 × 1.75 Length (under head): 25 mm Strength: Class 10.9 Quantity: 1 bolt Install: Torque to OEM service-manual specs Notes Always match thread size, length, and grade to the original fastener. If replacing multiple bolts in a critical assembly, replace as a full set where recommended.

Applications: CM630, CM830, CM1230, CM1630 Poly Corn Snout End Shield – High-Performance Design Built for durability and performance, our Poly Corn Snout is engineered with high-impact polyethylene and reinforced steel framing to withstand the toughest harvesting conditions. Features: Heavy-Duty Polyethylene Construction: Resistant to cracking, UV damage, and wear from debris and field conditions. Steel Reinforcement: Internal powder-coated steel brackets provide added structure and long-term durability. Replaceable Steel Tip: Built for high-wear zones with easy replacement when needed. Mounting Chain Included: Secures the shield firmly in place to prevent bounce or loss during operation. Universal Fitment: Designed to work with a wide range of corn head models. Ideal for custom builds or replacements, this component enhances protection, improves flow, and reduces crop damage across varying field conditions.

Models/Applications: 1083 OEM Brand: IH Part Features: Tracker drive kit to be used on 1083 Case-IH corn head - PTO Shaft included!  PTO Drive Shaft - 1-1/8'' Hex Coupler End 1-1/8'' Hex Clamp End (33" - OAL) *If you need a different PTO Drive Shaft please contact us!

Models/Applications: 2206, 2208, 2212, 2406, 2408, 2412, 3206, 3208, 3212, 3406, 3408, 3412, 3416, 3418 OEM Brand: IH Reference Number(s): 86538829 Other Notes: For use on IH 2200, 2400, 3200, and 3400 series corn heads Material: USA Steel Finish: Powder Coat - Black Proudly Made In The USA!

Models/Applications: 2606, 2608, 2612, 4206, 4208, 4212, 4406, 4408, 4412, 4416, 4418 OEM Brand: IH Reference Number(s): 48007795 Part Features: Hydraulically controlled deck plate Other Notes: For use on "Chopping" corn heads Material: USA Steel Finish: Powder Coat - Black Proudly Made In The USA!

Models/Applications: 2606, 2608, 2612, 4206, 4208, 4212, 4406, 4408, 4412, 4416, 4418 OEM Brand: IH Reference Number(s): 48007792 Part Features: Stationary/manual deck plate Other Notes: For use on "Chopping" corn heads Material: USA Steel Finish: Powder Coat - Black Proudly Made In The USA!
