Tillage Parts

BLADE 26X6MM NT 1-1/2SQ AXLE Center hole is for 1-1/2" axle.

BLADE 30 X 8MM SM PILOT

BLADE 30 X 8MM NT PILOT

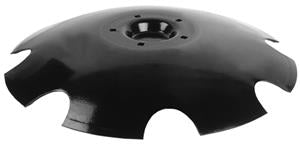

29" NOTCHED BLADE FOR LEMKEN RUBIN Application Standard Disc Blade Axle Size 5 Hole Concavity Shallow Edge Notched Hole Type Bolt Holes Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.0 MM Wear Tuff Coat No Number of Bolt Holes 5 Holes Diameter 29 Inch

BLADE 28X8MM NT PILOT 1" RD Application Standard Disc Blade Axle Size 1 Inch Round Concavity Standard Concavity Specification 4.25 Inch Edge Notched Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 5/16 Inch Thickness - MM 8.0 MM Wear Tuff Coat No Diameter 28 Inch

BLADE 28X8MM SM 1-1/2SQ AXLE Center hole is for 1-1/2" square axle. Application Standard Disc Blade Axle Size 1-1/2 Inch Square Concavity Standard Concavity Specification 4.25 Inch Edge Smooth Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 5/16 Inch Thickness - MM 8.0 MM Wear Tuff Coat No Diameter 28 Inch

BLADE 28X8MM NT FC 1-1/2 SQ AXLE Notched, raised flat center. Will replace 31225R3 Application Crimp Center Disc Blade Axle Size 1-1/2 Inch Square Concavity Shallow Concavity Specification 4.25 Inch Edge Notched Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 5/16 Inch Thickness - MM 8.0 MM Wear Tuff Coat No Diameter 28 Inch

BLADE 28 X 1/4 SM 1-1/2 SQ

BLADE 28 X 1/4 SM 1-1/2 SQ RFC Axle hole is for 1-1/2" square. RFC

BLADE 28 X 1/4 NT 1-1/2 SQ RFC Axle hole is for 1-1/2" square. RFC

BLADE 26 X 1/4 SM 1-1/8 X 1-1/4 SQ Application Standard Disc Blade Axle Size 1-1/8 Sq x 1-1/4 Sq Concavity Standard Concavity Specification 4.00 Inch Edge Smooth Hole Type Combo Hole Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.0 MM Wear Tuff Coat No Diameter 26 Inch

BLADE 26 X 1/4 NT 1-1/8 X 1-1/4 SQ 26" x 1/4" Notched Blade. Has 1-1/8" and 1-1/4" Center Hole. Replaces JD N242322, B35606 and N240064. Application Standard Disc Blade Axle Size 1-1/8 Sq x 1-1/4 Sq Concavity Standard Concavity Specification 4.00 Inch Edge Notched Hole Type Combo Hole Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.0 MM Wear Tuff Coat No Diameter 26 Inch

24" NOTCHED BLADE FOR LEMKEN RUBIN Application Standard Disc Blade Axle Size 5 Hole Concavity Shallow Edge Notched Hole Type Bolt Holes Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.0 MM Wear Tuff Coat No Number of Bolt Holes 5 Holes Diameter 24 Inch

BLADE 24 X 6MM NT 1-1/2 SQ

BLADE 24 X 1/4 SM 1-1/8 X 1-1/4 SQ 24" x 1/4" Smooth Blade. Has 1-1/8" and 1-1/4" Center Hole. Replaces JD N242322, B35606 and N240064. Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.0 MM Wear Tuff Coat No Diameter 24 Inch Application Standard Disc Blade Axle Size 1-1/8 Sq x 1-1/4 Sq Concavity Standard Concavity Specification 2.80 Inch Edge Smooth Hole Type Combo Hole
