Tillage Parts

AGRITUF DANISH POINT 4" - 7/16 BOLT HOLE Series AgriTuf Application Field Cultivator Product Type Danish Cultivator Shank Size/Angle Danish S-Tine Width 4 Inch Extended Wear Yes Material Hi-Strength Chrome Alloy Bolt Size 7/16 Inch Hex Bolt Bolt Hole Size 7/16 Inch Number of Bolt Holes 1 Brand AGRITUF

AGRITUF 2-1/2 INCH CHISEL POINT AGRITUF chisel points are made from extra hard AGRITUF chromium and shaped to maintain a sharp penetrating point even after sustaining a lot of wear. To ensure their bolts do not grind down, the bolt holes are recessed into the casting.  Application Chisel Plow Bolt Size 1/2 Inch Bolt Spacing 2-1/4 to 2-1/2 Inch Bolt Type Hex Head Extended Wear Yes Length 15 Inch Nose Style V Point Product Type Straight Point Series Agrituf Width 2-1/2 Inch Thickness 1-3/4 Inch Brand AGRITUF

8" CIH NO-TILL RIPPER POINT 8 inch No-Till Ripper Point. Fits Case IH 2500 In-Line Ripper. Replaces CNH 87388006. Brand AgSmart Application Ripper / Subsoiler For Shank Size 3/4 Inch No-Till Product Type Ripper Point Width 8 Inch

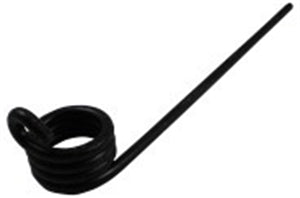

MELROE HARROW TINE REPLACE 6502210 Application Field Cultivator Product Type Harrow Coil Tine Width 7-3/4 Inch Length 12 Inch Tine Type Double Coil Wire 0.312 Coil ID 1.32 Inch Length Range 10 - 12 Inches Between Coils 3-1/8 Inch For Make Melroe Brand AgSmart

HERMAN/SUMMERS HARROW TINE 8H1150 Replaces 8H-1150. Application Field Cultivator Product Type Harrow Coil Tine Width 9 Inch Length 17-1/2 Inch Tine Type Double Coil Wire 0.375 Coil ID 2 Inch Length Range > 16 Inches Between Coils 5-1/2 Inch For Make Summers Brand AgSmart

Description: GLENCOE HARROW TINE-P1546 Fits Glencoe Harrow and Row Crop Cultivators. Application Field Cultivator Product Type Harrow Coil Tine Width 2-7/8 Inch Length 11-5/16 Inch Tine Type Single Coil Wire 0.375 Coil ID 2.5 Inch Length Range 10 - 12 Inches For Make Glencoe Brand AgSmart

Description: HITCH PIN FOR REYNOLDS SCRAPER Hitch Pin for Reynolds Scraper, 1.50-6NC x 17. Interchanges: FCB187 B187

2-1/2" CHROMIUM CARBIDE SWEEP Duck-Foot style, includes bolt, nut, and rubber shim. Replaces Acra-Plant 8602-01 Series S-Tine Sweep Application Field Cultivator Product Type Danish Cultivator Shank Size/Angle Danish S-Tine Width 2 1/2 Inch Thickness 1/4 Inch Extended Wear Yes Bolt Size 3/8 Inch Bolt Hole Size 3/8 Inch Number of Bolt Holes 1 Brand AgSmart

TWISTED CHISEL POINT Brand SMA

8" KNOCK ON FIELD MASTER FC SWEEP Compares to Nichols UWQ08B120. Thickness 1/4 Inch Width 8 Inches Application Field Cultivator Bolt Size Knock-On Product Type Cultivator Sweep Series Agsmart Shank Size/Angle 47 Degree Brand AgSmart

7" KNOCK ON FIELD MASTER FC SWEEP Knock-On Style, for 47 degree shank, 1/4 inch Thick, Cast Iron. Compares to Nichols UWQC7B. Series Agsmart Application Field Cultivator Product Type Cultivator Sweep Shank Size/Angle 47 Degree Width 7 Inch Thickness 1/4 Inch Bolt Size Knock-On

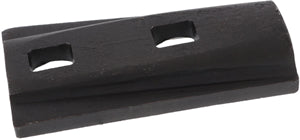

CAST CLIP FOR 47 DEGREE KNOCKON SWEEP For Straight Shank. Compares to Nichols Q18747. Has counter sunk bolt holes for plow bolts. Application Field Cultivator Product Type Cultivator Sweep Shank Size/Angle 47 Degree Brand AgSmart

Description: 9 X 1/4 FIELD CULTIVATOR SWEEP sweeps come in a variety of sizes that include 4, 6, 7, 8, 9, and 10 inch widths.   All sweeps are manufactured to OEM specifications.  The bottom line with any good cultivator sweep is its ability to last in all soil conditions - and the sweeps will do just that.  sweeps wear consistently and never narrow for long life and high performance. sweeps are designed to fit John Deere 1000 Series, Brady (1970-1971), Glencoe 1250, and Oliver 245/345 cultivators.  Sweeps are designed for a 40 degree shank angle and use Two 3/8 Inch #3 Plow Bolts on 1-5/8 to 1-3/4 inch Spacing Series FCO Application Field Cultivator Product Type Cultivator Sweep Shank Size/Angle 40 Degree Width 9 Inch Thickness 1/4 Inch Extended Wear No Bolt Size 3/8 Inch Bolt Spacing 1-5/8 to 1-3/4 Inch Brand SMA

YETTER & KBH COULTER BEARING KIT Uses LM67048 cones, LM67010 cups, 206293 seal and 909905 cap. UPC 847810008303

Description: 4X12 SMOOTH CULTIVATOR TIRE Application Row Crop Cultivator Product Type Gauge Wheel Width 4 Inch Height 12 Inch Brand AgSmart Application Make Type Model John Deere Air Drill 730 John Deere Field Cultivator 11 John Deere Grain Drill 1520, 450, 455, 515, 520, 8000, 8100, 8200, 8250, 8300, 8350, 8500 John Deere Planter 1760, 1770, 1770NT, 1775, 1775NT, 1790, 1795, MaxEmergeP John Deere Row Cultivator 725, 75, 815, 825, 835, 845, 85, 875, FM, RA4, RG, RM White Field Cultivator 374 White Planter 3407, 3408, 5400 Interchanges 70323526 W29-0157 PECP3559 C1093N (JOHN DEERE) 516492R1 (CNH) 420430M91 (AGCO) 516492R91 (CNH) 25L10308 420430M1 (AGCO) TP-C1093N DF137 DIC150 4X12SC 133441 RC7572 38-0018 A1054484M1 11236119 AP1093N 204001-H T15542 DC137 J9650 A1J809 GWT4X12CS 1J-809 6661001 066-61-001 P3559 TPC1093N
