Tillage Parts

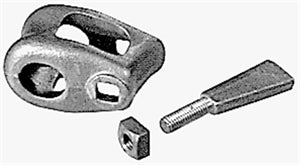

CAST CLIP FOR 47 DEGREE KNOCKON SWEEP For Straight Shank. Compares to Nichols Q18747. Has counter sunk bolt holes for plow bolts. Application Field Cultivator Product Type Cultivator Sweep Shank Size/Angle 47 Degree Brand AgSmart

Description: 9 X 1/4 FIELD CULTIVATOR SWEEP sweeps come in a variety of sizes that include 4, 6, 7, 8, 9, and 10 inch widths.   All sweeps are manufactured to OEM specifications.  The bottom line with any good cultivator sweep is its ability to last in all soil conditions - and the sweeps will do just that.  sweeps wear consistently and never narrow for long life and high performance. sweeps are designed to fit John Deere 1000 Series, Brady (1970-1971), Glencoe 1250, and Oliver 245/345 cultivators.  Sweeps are designed for a 40 degree shank angle and use Two 3/8 Inch #3 Plow Bolts on 1-5/8 to 1-3/4 inch Spacing Series FCO Application Field Cultivator Product Type Cultivator Sweep Shank Size/Angle 40 Degree Width 9 Inch Thickness 1/4 Inch Extended Wear No Bolt Size 3/8 Inch Bolt Spacing 1-5/8 to 1-3/4 Inch Brand SMA

9 X 1/4 HF FIELD CULTIVATOR SWEEP Series FCDF Application Field Cultivator Product Type Cultivator Sweep Shank Size/Angle 47 Degree Width 9 Inch Thickness 1/4 Inch Extended Wear No Bolt Size 3/8 Inch Bolt Spacing 1-5/8 to 1-3/4 Inch Brand SMA

YETTER & KBH COULTER BEARING KIT Uses LM67048 cones, LM67010 cups, 206293 seal and 909905 cap. UPC 847810008303

Description: 4X12 SMOOTH CULTIVATOR TIRE Application Row Crop Cultivator Product Type Gauge Wheel Width 4 Inch Height 12 Inch Brand AgSmart Application Make Type Model John Deere Air Drill 730 John Deere Field Cultivator 11 John Deere Grain Drill 1520, 450, 455, 515, 520, 8000, 8100, 8200, 8250, 8300, 8350, 8500 John Deere Planter 1760, 1770, 1770NT, 1775, 1775NT, 1790, 1795, MaxEmergeP John Deere Row Cultivator 725, 75, 815, 825, 835, 845, 85, 875, FM, RA4, RG, RM White Field Cultivator 374 White Planter 3407, 3408, 5400 Interchanges 70323526 W29-0157 PECP3559 C1093N (JOHN DEERE) 516492R1 (CNH) 420430M91 (AGCO) 516492R91 (CNH) 25L10308 420430M1 (AGCO) TP-C1093N DF137 DIC150 4X12SC 133441 RC7572 38-0018 A1054484M1 11236119 AP1093N 204001-H T15542 DC137 J9650 A1J809 GWT4X12CS 1J-809 6661001 066-61-001 P3559 TPC1093N

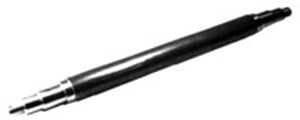

SPINDLE-31" FOR JD 630 DISC HARROW Transport wheel spindle for AN183318 hub (Weld in required). Fits John Deere Field Cultivators Models 960, 1000, 1010 and 1050. Double ended. 1- 7/8" OD. Brand FOR JOHN DEERE Product Category Transport Hub/Spindle Product Type Spindle Length 31 Inch O.D. 1-7/8 Inch

DISC SPOOL FOR KRAUSE - CONCAVE For 1-1/2 inch round axle, 2 3/8 inch deep. Will replace 1280-0-10. Brand FOR KRAUSE Product Category Disc Spool Width 2-3/8 Inch For Axle Size 1-1/2 Inch Round

BEARING SLEEVE FOR IH 1.75 OD" X 6.06" 1.75 inch OD x 1-1/26 inch ID x 6.06 inch Bearing Sleeve for Models with 9 inch spacing. Used with 472591 & 472593. Replaces 472594R1 Brand FOR CASE IH Product Category Bearing Sleeve Spacing 9 Inch Length 6-1/16 Inch I.D. 1-1/2 Inch O.D. 1-3/4 Inch

25 X 6.5MM PLAIN COULTER FOR KRAUSE Will replace Krause 30-246 and Q4006740. Application Coulter - Plain Coulter Center Hole 1-3/4 Inch Round Diameter 25 Inch Edge Smooth Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.5 MM Wear Tuff Coat No Brand Ingersoll

BLADE 24.51 X 6.5MM SM 1-3/4 SHALLOW 2.4 inch Shallow Concavity. For Landoll 7000 Series Vertical Tillage Machines and Sunflower 1211, 1233 Disc Harrows.Replaces Landoll 161530; Sunflower SN7588N. Application Vertical Till Axle Size 1-3/4 Inch Round Concavity Shallow Concavity Specification 2.4 Inch Diameter 24 Inch Edge Smooth Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.5 MM Wear Tuff Coat No Brand Osmundson

BLADE 22 X 6.5MM SM 1-3/4 RD AXLE 1.75 inch Round Center Hole and 1.6 inch Shallow Concavity. For Landoll 7000 & 7400 Series Vertical Till. Replaces 155617. Application Vertical Till Axle Size 1-3/4 Inch Round Concavity Shallow Concavity Specification 1.75 Inch Diameter 22 Inch Edge Smooth Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.5 MM Wear Tuff Coat No Brand Osmundson

BLADE 22 X 3/16 SAMURAI 1-3/4 RD 24 Wave Serrated Edge with 1-3/4 inch Shallow Concavity for Sunflower Vertical Till. Replaces SN16845. Application Vertical Till Axle Size 1-3/4 Inch Round Concavity Shallow Concavity Specification 1-3/4 Inch Diameter 22 Inch Edge Samurai Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 3/16 Inch Thickness - MM 5.0 MM Wear Tuff Coat No Brand Osmundson

BLADE 22 X 1/4 NT 1-3/4 RD Application Standard Disc Blade Axle Size 1-3/4 Inch Round Concavity Standard Concavity Specification 2.50 Inch Diameter 22 Inch Edge Notched Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.0 MM Wear Tuff Coat No Brand Osmundson

BLADE 22 X 1/4 NT 1-1/2 RD Application Standard Disc Blade Axle Size 1-1/2 Inch Round Concavity Standard Concavity Specification 2.50 Inch Diameter 22 Inch Edge Notched Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 1/4 Inch Thickness - MM 6.0 MM Wear Tuff Coat No Brand Osmundson

BLADE 18 X 7G SM 1-1/2 RND Application Standard Disc Blade Axle Size 1-1/2 Inch Round Concavity Standard Concavity Specification 1.63 Inch Diameter 18 Inch Edge Smooth Hole Type Single Punch Material Boron 15B26 Rockwell Hardness 46-52 Rockwell Scale Thickness - Inch or Gauge 7 Gauge Thickness - MM 4.5 MM Wear Tuff Coat No Brand Osmundson
