Combine

Knife Wobble (120.13" O.D. BELT LENGTH) - Wobble Box (15'-20' FLOATING CUTTER BAR) Models/Applications: 540, 550, 750, 760, 850, 860  Replaces: 833962M1 Belt, C, 0.875 x 119in OC Specifications Angle 40 Cord Type Polyester Effective Length (in) 117.6 Effective Length (mm) 2987 Notched false Section C Outside Circumference (in) 119 Outside Circumference (mm) 3022.6 Top Width (in) 0.875 Top Width (mm) 22.2

Cylinder Drive Models/Applications: 750, 760, 850, 860 Replaces: 833868M2 Belt, HLK, 1.75 x 110in OC Specifications Angle 30 Cord Type Aramid - Kevlar Effective Length (in) 0 Effective Length (mm) 0 Notched false Section HLK Outside Circumference (in) 0 Outside Circumference (mm) 0 Top Width (in) Top Width (mm)

Traction, Lower (Hydro) & Traction Drive, Upper (Hydro) Models/Applications: 750 (S/N 1696016539 & above), 760, 850, 860 (Prior to S/N 1746018278), 850 (S/N 1696027544 & above), 860 (Prior to S/N 1746018278)  Replaces: 833866M1 Belt, M2, in x in OC, 6 RIB Specifications Angle 40 Cord Type Polyester Effective Length (in) 0 Effective Length (mm) 0 Notched false Section M Outside Circumference (in) 0 Outside Circumference (mm) 0 Top Width (in) 2.208 Top Width (mm) 56.1

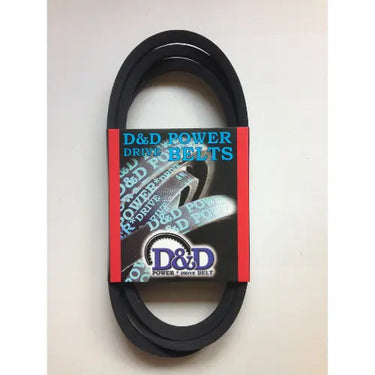

Returns Elevator Drive Models/Applications: 750, 760, 850, 860 Replaces: 833854M2 Belt, B/5L, 0.656 x 118in OC Specifications Angle 40 Cord Type Polyester Effective Length (in) 116.4 Effective Length (mm) 2956.6 Notched false Section B/5L Outside Circumference (in) 118 Outside Circumference (mm) 2997.2 Top Width (in) 0.656 Top Width (mm) 16.7

Bin Unloader Models/Applications:K2 Replaces: 71339772 Belt, C, 0.875 x 146in OC Specifications Angle 40 Cord Type Polyester Effective Length (in) 144.6 Effective Length (mm) 3672.8 Notched false Section C Outside Circumference (in) 146 Outside Circumference (mm) 3708.4 Top Width (in) 0.875 Top Width (mm) 22.2

Chopper Straw - Grain Saver, Air Flow Lower & without Chopper Models/Applications: L2-L3 (S/N 17501 & above), L2-L3 (S/N 17501 & above), M, M2-M3 (S/N 19901 & above), MH2, MH3 Replaces: 71300867 Belt, C, 0.875 x 194in OC Specifications Angle 40 Cord Type Polyester Effective Length (in) 192.6 Effective Length (mm) 4892 Notched false Section C Outside Circumference (in) 194 Outside Circumference (mm) 4927.6 Top Width (in) 0.875 Top Width (mm) 22.2

Cylinder Drive 804-1318 RPM & Traction Drive, Hydro (2V) D2900 (649T) Models/Applications: L2-L3 (S/N 17501-28000), M2-M3 (S/N 19901-25900) Replaces: 71188635 Belt, BK2, 1.48 x 118in OC, 2 Band Specifications Angle 40 Cord Type Aramid - Kevlar Effective Length (in) 0 Effective Length (mm) 0 Notched false Section BK Outside Circumference (in) 118 Outside Circumference (mm) 2997.2 Top Width (in) 1.5 Top Width (mm) 38.1

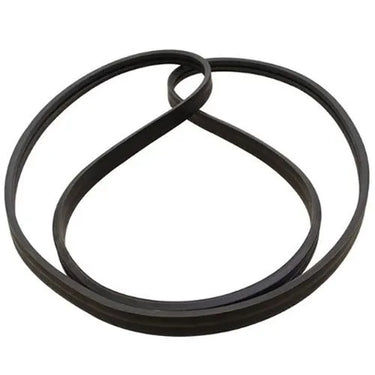

Main Drive Models/Applications: K2, F2 (Gas), F3 (Gas), L (Diesel), M (Diesel), M2, M3, MH2, MH3 Gas  Replaces: 71153532 Belt, BK2, 1.48 x 163in OC, 2 Band Specifications Angle 40 Cord Type Aramid - Kevlar Effective Length (in) 0 Effective Length (mm) 0 Notched false Section BK Outside Circumference (in) 163 Outside Circumference (mm) 4140.2 Top Width (in) 1.5 Top Width (mm) 38.1

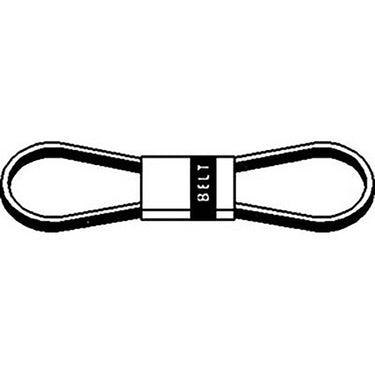

Cylinder 387-1343 RPM, Traction Drive, Hydro Models/Applications: K, K2 Replaces: 71147546 Belt, BK2, 1.48 x 98in OC, 2 Band Specifications Angle 40 Cord Type Aramid - Kevlar Effective Length (in) 0 Effective Length (mm) 0 Notched false Section BK Outside Circumference (in) 98 Outside Circumference (mm) 2489.2 Top Width (in) 1.5 Top Width (mm) 38.1

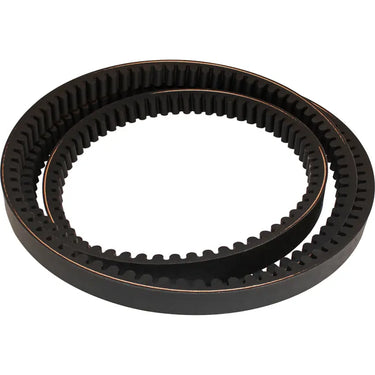

Pivot, RH Models/Applications: E3, K, K2 Replaces: 71139966 Belt, HKK, 1.5 x 124.9in OC Specifications Angle 30 Cord Type Aramid - Kevlar Effective Length (in) 0 Effective Length (mm) 0 Notched false Section HKK Outside Circumference (in) 0 Outside Circumference (mm) 0 Top Width (in) Top Width (mm)

Traction Drive, Non-Hydro Models/Applications: E3, K  Replaces: 71139963 Belt, HKK, 1.5 x 94.1in OC Specifications Angle 30 Cord Type Aramid - Kevlar Effective Length (in) 0 Effective Length (mm) 0 Notched false Section HKK Outside Circumference (in) 0 Outside Circumference (mm) 0 Top Width (in) Top Width (mm)

Return Auger & Walker  Models/Applications:410, 510, 550 Replaces: 227986M2 Belt, B/5L, 0.656 x 181in OC Specifications Angle 40 Cord Type Polyester Effective Length (in) 179.4 Effective Length (mm) 4556.8 Notched false Section B/5L Outside Circumference (in) 181 Outside Circumference (mm) 4597.4 Top Width (in) 0.656 Top Width (mm) 16.7

Cylinder Drive  Models/Applications: 410, 510, 550  Replaces: 226981M1 Belt, HLK, 1.75 x 91.5in OC Specifications Angle 30 Cord Type Aramid - Kevlar Effective Length (in) 0 Effective Length (mm) 0 Notched false Section HLK Outside Circumference (in) 0 Outside Circumference (mm) 0 Top Width (in) Top Width (mm)

Grain Tank Unloader Drive Models/Applications: 1680 (S/N JJC0115352 & above),1688, 2188, 2377, 2388, 2577, 2588  Replaces: 1989217C1 Belt, CK, 0.875 x 146in OC Specifications Angle 40 Cord Type Aramid - Kevlar Effective Length (in) 144.6 Effective Length (mm) 3672.8 Notched false Section CK Outside Circumference (in) 146 Outside Circumference (mm) 3708.4 Top Width (in) 0.875 Top Width (mm) 22.2

Cleaning Fan Drive  Models/Applications: 1440, 1460, 1480, 1640, 1660 (w/o extended length cleaning system), 1680  Replaces: 195396C2 Belt, HJP, 1.25 x 74in OC Specifications Angle 30 Cord Type Polyester Effective Length (in) 0 Effective Length (mm) 0 Notched false Section HJP Outside Circumference (in) 0 Outside Circumference (mm) 0 Top Width (in) Top Width (mm)
