Planter

15" X 3.5MM DISC OPENER FOR JD PLANTERS Fits John Deere planters 1530, 1535, 1700, 1710, 1720, 1730, 1750, 1760, 1770, 1780, 1790Replaces John Deere OEM Number(s) AA6524815" (3.5mm thick) HD Disc Opener AssemblyUses double row Peer bearingDust cap not included Blade Origin USA Diameter 15 Inch Thickness 3.5 MM Uses Dust Cap SMA78218 Brand AgSmart

ROCKER PIVOT FOR JD PLANTERS Rocker Pivot for Walking Gague Wheels. Fits MaxEmerge Plus, Pro, MaxEmerge 2 (late), XP, XP Pro, MaxEmerge 5, 1530, 1535. Replaces A62609. Brand AgSmart

HI-RATE SEED SENSOR (RED) Fits any seed tube with 3/4 inch opening.  Commonly refered to as the 'red' sensor.  Connector 3-Pin Delphi Weather Pack Pin A Green Wire - Signal Pin B Black Wire - Ground Pin C Red Wire - Supply Voltage

REGULAR RATE SEED SENSOR (YELLOW) Fits any seed tube with 3/4 inch opening.  Commonly refered to as the 'yellow' sensor.    Used on Monosem NG Plus Small Grain - 45244-0891AS1 Connector 3-Pin Delphi Weather Pack Pin A Green Wire - Signal Pin B Black Wire - Ground Pin C Red Wire - Supply Voltage

UPPER PARALLEL ARM-JD 23" Upper Parallel Arm, Extended 23 inch Length, 2 used. Fits Max Emerge 2, Plus, Pro, XP, XP Pro, Max Emerge 5, Exact Emerge, 1530, 1535. Replaces A61571. Brand AgSmart

ROW UNIT SHANK FOR JOHN DEERE PLANTERS Includes A83257 cast head frame, AA62767 cast lower shank, (3) 19M7791 bolts.

SHOULDER BOLT FOR JD PLANTERS Shoulder Bolt for Rocker Body.   Apply loctite upon assembly to rocker body. Fits MaxEmerge Plus, Pro, MaxEmerge 2 (late), XP, XP Pro, MaxEmerge 5, 1530, 1535 Brand AgSmart

COVERING DISC 8" FOR JD - AA58321 Includes disc, bearing, bolt, hub.Reference:  Bushing SMA46176 (A46176), 5/8-11 inch nut and flat washer.Will replace AA33061, AA58321 Length 8" Width 8" Brand AgSmart

ROCKER BODY WITH BOLT AND BUSHING Rocker Body with Mounting Hardware (bolt and bushing) for Walking Gauge Wheels. Fits MaxEmerge Plus, Pro, MaxEmerge 2 (late), 1530. Shoulder bolt and rocker pivot not included. Replaces AA57482. Brand AgSmart

THREADED BUSHING - WHEEL ARM 16MM ID 5/8 inch Threaded Bushing for Wheel Arm. Will replace JD A57058. Brand AgSmart

THREADED BUSHING - WHEEL ARM-1" 1 inch Threaded Bushing for Wheel Arm. Will replace JD A57057. Brand AgSmart

15" X 3MM DISC OPENER FOR JD AND KINZE Uses SMA52024 dust cap.Will replace AA55927 and AA37474. Diameter 15 Inch Thickness 3 MM Blade Origin USA Uses Dust Cap SMA52024 Brand AgSmart

BUSHING FOR JD CLOSING WHEEL ARM Closing Wheel Arm Bushing for John Deere. Used with SMA61351 and SMA93258 Arm, 2 bushings required per row. Will replace JD A55888. Used on MaxEmerge®Plus, Pro, XP planter row units; 1530, 1535. Brand AgSmart

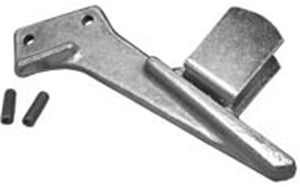

GUARD FOR JD PLANTER SEED TUBE Fits John Deere 7000, 7100 planter and 1530 and 1535 Drill. Uses Roll Pin 488-1230841. Replaces JD AA54755. Brand AgSmart

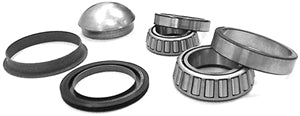

BEARING KIT FOR JD SEEDER BLADE HUB Bearing Kit for 982-219700 (AN213544) Seeder Blade Hub. Includes AgSmart Bearing, Cups, Cones, Seals and Retainers. Brand AgSmart
