LANUDJD1000K -- Grain tank cross auger shut off kit for John Deere® combine models 9560 - S770
$3,306.50
Our unloading auger clutch system is an electromagnetic clutch system for the unloading auger system on John Deere® combines. This system allows the combine operator to empty out the unloading auger without having to unload the grain tank, which greatly reduces the wear and tear on unloading auger swing components.
The LANUDJD1000K is simple to install. The system is operated with a foot switch in the cab, leaving your hands free to operate the combine. The LANUDJD1000K fits John Deere® HUR combine models 9560 - S770.
Lankota grain tank cross auger shut off kits for John Deere® combines
LANKOTA Kit #
Models Covered
Sprocket
QTY
LANUDJD1000K
HUR **60-S770 Series combines
No. 60 - 60 Teeth
2
LANUDJD2000K
S680, S780, S690, & S790 Series combines
No. 80 - 40 Teeth
2
LANUDJD3000K
NON-HUR **60-S770 & 50 Series STS combines
No. 60 - 49 Teeth
2
LANUDJD4000K
**00 & *10, & 50 Series Walker combines
No. 60 - 49 Teeth
2
Recommended Seasonal Maintenance

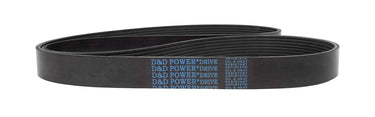

R135609-N -- Belt - ALTERNATOR (185 AMP)
$42.00
Description: JD Replacement Belt, Rubber, 79.75" Length, 8 Band, w/ 185 AMP Alternator
OEM: JD
Models/Applications: 9560STS, 9650STS, 9660STS, 9750STS, 9760STS
Replaces: R135609
SKU: R135609-N

N110085-N -- Belt - Tailings Lower Auger & Elevator, Lower
$19.49
Tailings Lower Auger & Elevator, Lower Models/Applications:6600, 7700, 9400, 9410, 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9660, CTS, CTS II, CTS RICE Replaces:N110085

H23950-N -- Belt - Clean Grain Elevator, Auger, U-Joint & Chopper, Windrow or Foward Position & S...
$18.12
Clean Grain Elevator, Auger, U-Joint & Chopper, Windrow or Foward Position & Straw Chopper (Standard Baling)
Models/Applications: 6600, 7700
Replaces: H23950
Belt, C, 0.875 x 123in OC
Specifications
Angle
40
Cord Type
Polyester
Effective Length (in)
121.6
Effective Length (mm)
3088.6
Notched
false
Section
C
Outside Circumference (in)
123
Outside Circumference (mm)
3124.2
Top Width (in)
0.875
Top Width (mm)
22.2

H157726-N -- Belt - Chopper, Front (Fine Cut) & Straw Chopper, Front
$51.69
Chopper, Front (Fine Cut) & Straw Chopper, Front
Models/Applications: 9450, 9550, 9550SH, 9560, 9560SH, 9650, 9610, 9650
Replaces: H157726
Belt, B2, 1.48 x 191in OC, 2 Band
Specifications
Angle
40
Cord Type
Polyester
Effective Length (in)
0
Effective Length (mm)
0
Notched
false
Section
B2
Outside Circumference (in)
191
Outside Circumference (mm)
4851.4
Top Width (in)
1.5
Top Width (mm)
38.1

H152146-N -- Belt - Cleaning/Separator Fan, Regular Speed (750-1350RPM)
$112.66
Cleaning/Separator Fan, Regular Speed (750-1350RPM)
Models/Applications: 9400 (S/N 670101 & above), 9410, 9450, 9500, 9500SH (S/N 670201 & above), 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9650, 9660, CTS (S/N 670501 & above), CTS II, T660, T670
Replaces: H152146
Belt, HJP, 1.25 x 106.5in OC
Specifications
Angle
30
Cord Type
Polyester
Effective Length (in)
0
Effective Length (mm)
0
Notched
false
Section
HJP
Outside Circumference (in)
0
Outside Circumference (mm)
0
Top Width (in)
Top Width (mm)

H151952-N -- Belt - Header and Real Pump (Standard Capacity)
$48.74
Header and Real Pump (Standard Capacity)
Models/Applications: 9400 (S/N 635101 & above), 9410, 9450, 9500, 9500SH (S/N 635201 & above), 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9650, 9660, CTS, CTS II, CTS RICE
Replaces: H151952
Belt, D, 1.25 x 169in OC
Specifications
Angle
40
Cord Type
Polyester
Effective Length (in)
166.2
Effective Length (mm)
4221.5
Notched
false
Section
D
Outside Circumference (in)
169
Outside Circumference (mm)
4292.6
Top Width (in)
1.25
Top Width (mm)
31.8

H128010-N -- Belt - Secondary Countershaft
$28.62
Secondary Countershaft
Models/Applications: 9400, 9410 (High Power), 9450, 9500, 9500SH, 9501, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9660, CTS, CTS II, CTS RICE, T660, T670
Replaces: H128010
Belt, C, 0.875 x 192in OC
Specifications
Angle
40
Cord Type
Polyester
Effective Length (in)
190.6
Effective Length (mm)
4841.2
Notched
false
Section
C
Outside Circumference (in)
192
Outside Circumference (mm)
4876.8
Top Width (in)
0.875
Top Width (mm)
22.2

H115881-N -- Belt - Cylinder Drive, Reg Dual and Single Range, STD (240-960 RPM)
$155.64
Cylinder Drive, Reg Dual and Single Range, STD (240-960 RPM)
Models/Applications: 9400, 9410, 9450, 9500, 9501, 9500SH, 9510, 9510SH, 9550, 9550SH, 9600, 9610, 9650, 9660, T660, T670, CTS, CTS II, CTS RICE (111.5" O.D. Belt)
Replaces: H115881
Belt, BK2, 2.95 x 111in OC, 4 Band
Specifications
Angle
40
Cord Type
Aramid - Kevlar
Effective Length (in)
0
Effective Length (mm)
0
Notched
false
Section
BK
Outside Circumference (in)
111
Outside Circumference (mm)
2819.4
Top Width (in)
3
Top Width (mm)
76.2

AH139436-N -- Belt - Beater Drive (100% Beater Speed)
$11.42
Beater Drive (100% Beater Speed)
Models/Applications: 9400, 9410, 9450, 9500, 9510, 9510SH, 9500SH, 9501, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9660
Replaces: AH139436
Belt, C, 0.875 x 79in OC
Specifications
Angle
40
Cord Type
Polyester
Effective Length (in)
77.6
Effective Length (mm)
1971
Notched
false
Section
C
Outside Circumference (in)
79
Outside Circumference (mm)
2006.6
Top Width (in)
0.875
Top Width (mm)
22.2

99771718 -- JD 50 or 60 Series Combine to 2200, 2400 IH - 96C, 98C NH w/Yokes
$1,965.00
Corn Head Brand: IH - NH
Corn Head Models: 2206, 2208, 2212, 2406, 2408, 2412 - 96C, 98C
Combine Brand: JD
Combine Models: 9550, 9550SH, 9560, 9560SH, 9560STS, 9570STS, 9650, 9650CTS, 9650STS, 9660, 9660CTS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS, 9870STS
Proudly Made In The USA!

JD9313-N -- Ag Bearing - 1" Hex Bore Spherical OD
$10.50
Models/Applications:9400 Series, 9500 Series, 9600 Series, 9400, 9410, 9450, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9600, 9610, 9650, 9650CTS, 9660, 9660CTS
Replaces:JD9313

AH218485-N -- Grain Tank Loading Auger - 57.125" 10" RH Flighting
$615.00
Models/Applications:9400 Series, 9500 Series, 9600 Series, 9700 Series, 9450, 9550, 9550SH, 9560, 9560SH, 9650, 9650CTS, 9650STS, 9660, 9660CTS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS
Replaces:AH218485

AH151119-N -- Concave Angle - Front 53-1/8''
$235.00
Models/Applications:9400 Series, 9500 Series, 9600 Series, 9400, 9410, 9450, 9500, 9510, 9550, 9560, 9650CTS, 9660CTS
Replaces:AH151119

H137919-N -- Clean Grain Loading Auger Bushing
$21.57
Models/Applications:9400 Series, 9500 Series, 9600 Series, 9500, 9600, 9650, 9450, 9510, 9550, 9610, 9550SH, 9510SH, 9650CTS, 9650STS, 9760STS, 9750STS, 9560, 9500SH, 9400, 9410, CTS, 9660, 9560SH, 9660CTS, 9660STS, 9860STS, 9560STS
Replaces:H137919
