Hay Tedder Parts

Tedder Tire, 3.50" x 6", Tri-Ribbed, 4 ply, 1" Bore, 2.28" Hub Length.For Galfre, Kuhn, John Deere, New Holland, Rossi, Sitrex, Tonutti, and Vermeer Name Value Tire Size 3.5 x 6 4 Plly Hub Specification 1 Inch Bore with 2.28 Inch Hub Length Brand TISCO Make Tonutti Make Vermeer Model GT230 Model GT250 Model GT310 Model GT380 Model GT440 Model GT500 Model GT510 Model GT540 Model PL015 Model PR015 Model TD120 Model TD200 Type Hay Tedder Category1 Tires, Tracks, & Wheels Category2 Rims

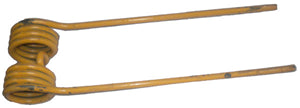

For Tedders with Rear Offset Tine.375" Wire, Yellow, Packed 20 per Carton Name Value Tine Diameter .375 Color Yellow Brand AgSmart Make Ford_New Holland Make John Deere Make Kuhn Model 156 Model 157 Model 163 Model 169 Model 752 Model 754 Model 756 Model 24T Model GF22N Model GF4000 Model GR5000 Model GRS24 Model GRS24T Model GF222T Model GF22NP Model GF22NT Model GF3701 Model GF4000M Model GF4000T Model GF4201MH Model GF440M Model GF440P Model GF440S Model GF440SRP Model GF440T Model GF5000H Model GF5000M Model GF5000MH Model GF5000MHA Model GF5000T Model GF5001MH Model GF5001MHA Model GF5001T Model GF5001VT Model GF5001VTH Model GF6000 Model GF6000MH Model GF6001MH Model GF6301MH Model GF6301MHO Model GF7000T Model GF7001T Type Hay Tedder Type Hay Rake Category1 Cutting Parts Category2 Teeth

Tedder Tire & Wheel 15" x 6.00"-6", 6 ply, 1" Bore, 2" Offset Hub, 2" Hub Length.For Krone, Kuhn, John Deere, New Holland, M&W and Sitrex. Name Value Tire Size 15.00 x 6.00 - 6 6 Ply Hub Specification 1 Inch Bore with 2 Inch Offset Hub Length 2 Inch Brand TISCO Make M&W Model M & W Tedder Type Hay Tedder Category1 Tires, Tracks, & Wheels Category2 Rims

Tedder tire complete, ribbed tire and rim assembly, 15" X 6.00"-6, 6 ply, 2 62052RS 25 mm bore bearings, hub length 3.18".Fits most tedders. Teddders: Krone, Kuhn, John Deere, New Holland, MandW and Sitrex. (15" X 6.00-6" Tire). Name Value Tire Size 15.00 x 6.00 - 6 6 Ply Hub Specification 1 Inch Bore with 3.18 Hub Length Brand TISCO Make M&W Model M & W Tedder Type Hay Tedder Category1 Tires, Tracks, & Wheels Category2 Rims

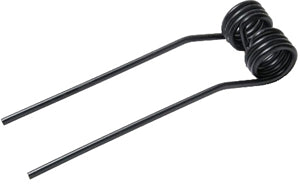

Replaces GT4, GT46, Agco R18030616, .375" Wire, Black. Packed 25 per Carton Name Value Tine Diameter .375 Color Black Brand AgSmart Make Befco Make Enorossi Make Galfre Make Hesston Make New Idea Make Walton Model GAT320 Model GAT500 Model BHT10M Model BHT17V Model BHT19V Model G2 Model G4 Model G6 Model GL2 Model GL4 Model VORTEX 17 Model VORTEX 24 Model 280 Model GT280 Model GTS280 Model GS400 Model GS650 Model GTS520 Model 3710 Model 3717 Model 3727 Model 4210 Model 4217 Model 4227 Type Hay Rake Type Hay Tedder Category1 Cutting Parts Category2 Teeth

Tedder tire complete. Ribbed tire and rim assembly,16" x 6.50"-8", 6 ply, 1" bore, 25 mm, hub length 3.18", (includes bearing 6205-2RS).Fits most tedders. Tedders: Krone, Kuhn, John Deere, New Holland, M&W, and Sitrex (with 16" X 6.50" X 8" tire). Name Value Tire Size 16.00 x 6.50 -8 Hub Specification 1 Inch Bore with 3-1/8" Hub Length Brand TISCO Make Amco Make M&W Make Sitrex Model LFBD2 Model LFD2 Model WTD5 Model M & W Tedder Model 2G-252 Model 2GL-302 Model RT2500 Model RT3000 Model RT5200H Model RT5200M Model RT5800H Model ST384 Model ST520 Model ST780H Type Disc Harrow Type Hay Tedder Category1 Bearings Category1 Tires, Tracks, & Wheels Category2 Roller Category2 Rims

For Tonutti, Agris, Sitrex 210574, Also H&S, M&W PT207, PT407, PT407H, Rhino PT405H.Replaces 0300116.375” Wire, Cream Color . Packed 25 per Carton Name Value Tine Diameter .375 Color Cream White Brand AgSmart Make Bush Hog Make H&S Make Rhino Make Sitrex Make Tonutti Model HT210 Model HT417 Model HT417H Model HT419H Model RT5200H Model RT5800H Model RTG2 Model RTG6 Model PT207 Model PT405 Model PT405H Model PT419H Model 2G Model 2G-252 Model 2GL Model 2GL-302 Model 4G Model 4GL Model 5G Model 5GL Model RT2500 Model RT3000 Model RT5200M Model ST384 Model ST520 Model GT230 Model GT250 Model GT310 Model GT380 Model GT440 Model GT500 Model GT510 Model GT540 Model PL015 Model PR015 Type Hay Tedder Category1 Cutting Parts Category2 Teeth

Fits Tonutti, Rossi, Gehl, Gramip, Guappo, H&S, Harvestman, Icam, John Deere, Lorenza, Masler, Massey, Rex. Name Value Height 56 Bolt Holes 6 Holes 12.5mm Bolt Pattern 131 mm ( 5.15 Inches ) Center Hole 80 mm ( 3.15 Inches ) Color Yellow Diameter 55 Inches Direction Left Hand Straight Tines Replacement Tines 804-E95724 Tine Diameter 7.00 mm Brand AgSmart Make DuraBilt Make Enorossi Make John Deere Make Tonutti Make Vermeer Model HCL10 Model HCL12 Model HCL8 Model Bat 10 Model Bat 12 Model Bat 8 Model 702 Model RCS10 Model RCS8 Model RSC12 Model RTP10 Model RTP12 Model RTP8 Model T13 Model T6 Model T9 Model V10 Model V12 Model V14 Model V16 Model V18 Model V20 Model WR20 Model WR22 Model WR24 Type Hay Rake Type Hay Tedder Category1 Cutting Parts Category2 Rake Wheels

Fits Tonutti, Rossi, Gehl, Gramip, Guappo, H&S, Harvestman, Icam, John Deere, Lorenza, Masler, Massey, Rex. Name Value Bolt Holes 6 Holes 12.5mm Bolt Pattern 131 mm ( 5.15 Inches ) Center Hole 80 mm ( 3.15 Inches ) Color Yellow Diameter 55 Inches Direction Right Hand Straight Tines Replacement Tines 804-E95724 Tine Diameter 7.00 mm Brand AgSmart Make DuraBilt Make Enorossi Make John Deere Make Tonutti Make Vermeer Model HCL10 Model HCL12 Model HCL8 Model Bat 10 Model Bat 12 Model Bat 8 Model 702 Model RCS10 Model RCS8 Model RSC12 Model RTP10 Model RTP12 Model RTP8 Model V10 Model V12 Model V14 Model V16 Model V18 Model V20 Model WR20 Model WR22 Model WR24 Type Hay Rake Type Hay Tedder Category1 Cutting Parts Category2 Rake Wheels
