IH3000SRK -- 3000 Series Knife Roll Replacement Kit (1 Per Row) -- Case-IH®

Models/Applications:

• Case IH: 3206, 3208, 3212, 3406, 3408, 3412, 3416, 3418

• New Holland: 98D (with knife rolls)

OEM Brand: Case IH / New Holland

Part Notes: Complete knife roll replacement kit for 3000 Series corn heads. Contains everything needed to replace both left-hand and right-hand stalk roll shafts, knives, and related hardware to restore optimal cutting and feeding performance.

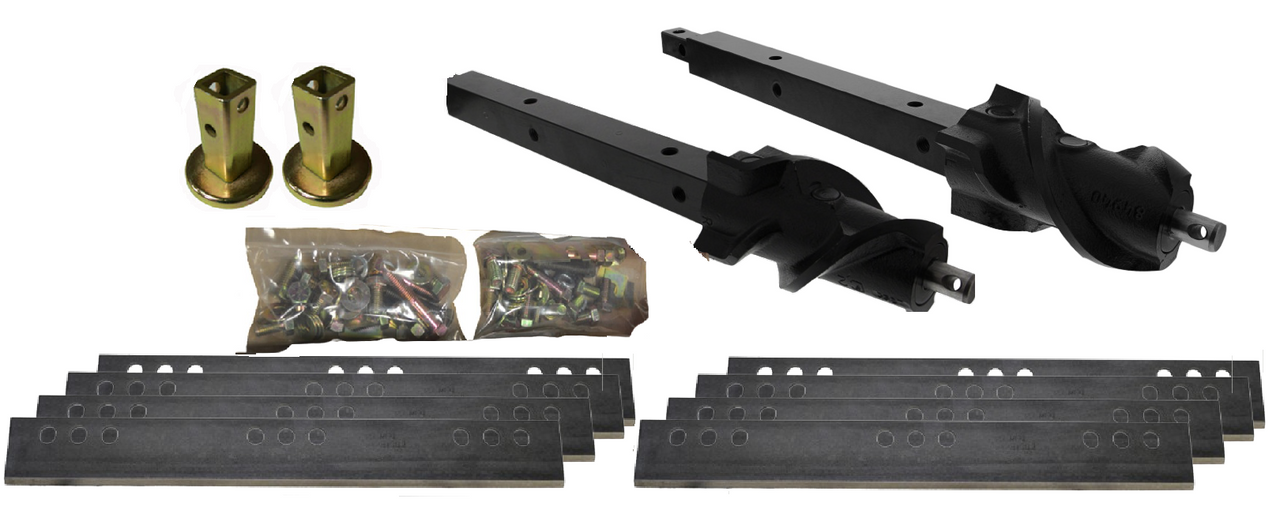

Kit Includes:

• (1) 84417940-N – Stalk Roll Shaft with Point, LH

• (1) 84417943-N – Stalk Roll Shaft with Point, RH

• (8) 87598741-C – Combination Stalk Roll Knife (CNH 900, 1000, & 3000 Series)

• (22) P1/2X1CS8 – 1/2" GR8 x 1" Bolt

• (30) P1/2FW8 – 1/2" GR8 Flat Washer

• (4) P1/2X23/4CS8 – 1/2" x 2-3/4" GR8 Bolt

• (6) P1/2LW – 1/2" Lock Washer

• (4) P1/2NG8 – 1/2" GR8 Nut

• (2) P1/2X21/2SH5C – Square Stalk Roll Set Screw

• (4) 199806C1-N – Large Stalk Roll Shim

• (4) 199408C1-N – Small Stalk Roll Shim

• (4) 1327159C1-N – Small Stalk Roll Shim

• (2) 176301C1-N – Drive Coupler

• (1) 1327204C1-N – LH Stalk Roll Shaft Support

• (1) 1327205C1-N – RH Stalk Roll Shaft Support

Material: High-strength, precision-machined steel and hardened high-carbon steel knives

PROUDLY MADE TO OEM SPECIFICATIONS

Description:
Restore your header’s cutting performance with this complete Case IH 3000 Series Knife Roll Replacement Kit. This all-in-one package includes both left-hand and right-hand stalk roll shafts with points, hardened combination stalk roll knives, precision shims, and all required mounting hardware. Designed to meet OEM specifications, the kit ensures smooth crop feeding, efficient stalk processing, and reduced downtime in the field.
