LANSR20348W -- Case®/New Holland® articulated tractor 74" stalk roller kit (narrow frame with front weights/chin weight/bumper)

LANSR20348W -- Case®/New Holland® articulated tractor 74" stalk roller kit (narrow frame with front weights/chin weight/bumper)

$8,750.00

LANSR20348W -- Case®/New Holland® articulated tractor 74" stalk roller kit (narrow frame with front weights/chin weight/bumper)

$8,750.00
LANSR20348W -- Case®/New Holland® articulated tractor 74 LANSR20348W -- Case®/New Holland® articulated tractor 74 LANSR20348W -- Case®/New Holland® articulated tractor 74
LANSR20348W -- Case®/New Holland® articulated tractor 74" stalk roller kit (narrow frame with front weights/chin weight/bumper)
LANSR20348W -- Case®/New Holland® articulated tractor 74" stalk roller kit (narrow frame with front weights/chin weight/bumper)
LANSR20348W -- Case®/New Holland® articulated tractor 74" stalk roller kit (narrow frame with front weights/chin weight/bumper)

LANSR20348W -- Case®/New Holland® articulated tractor 74" stalk roller kit (narrow frame with front weights/chin weight/bumper)

$8,750.00
Product description

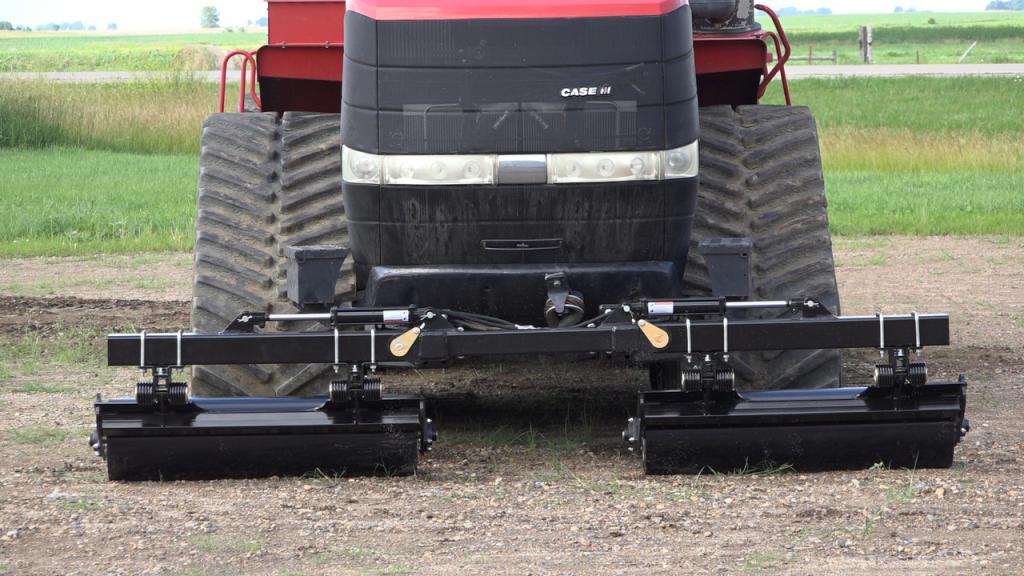

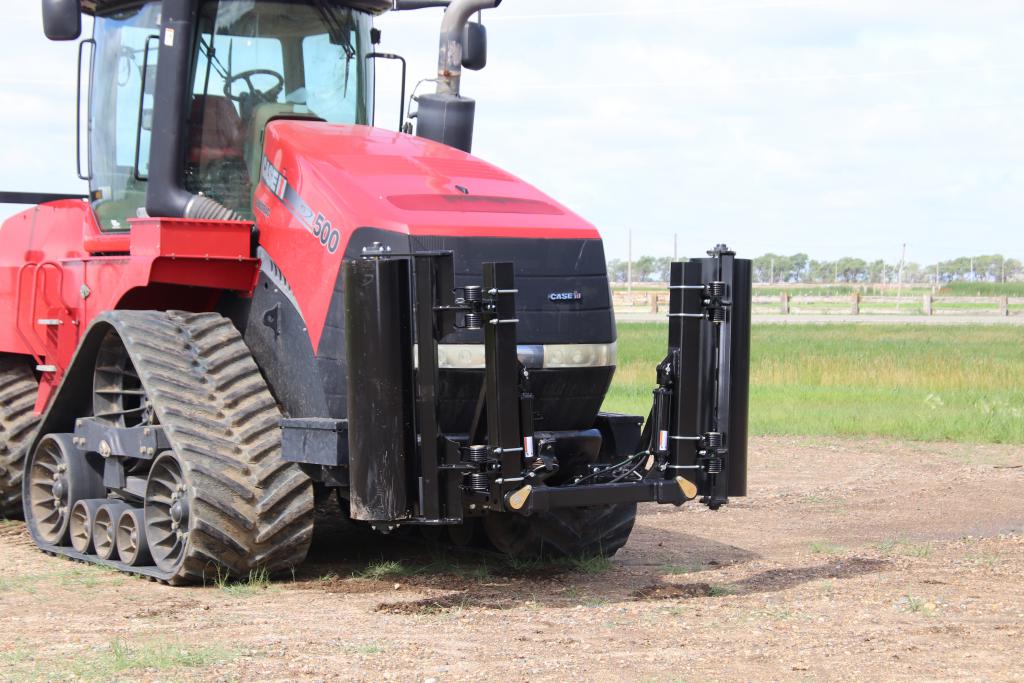

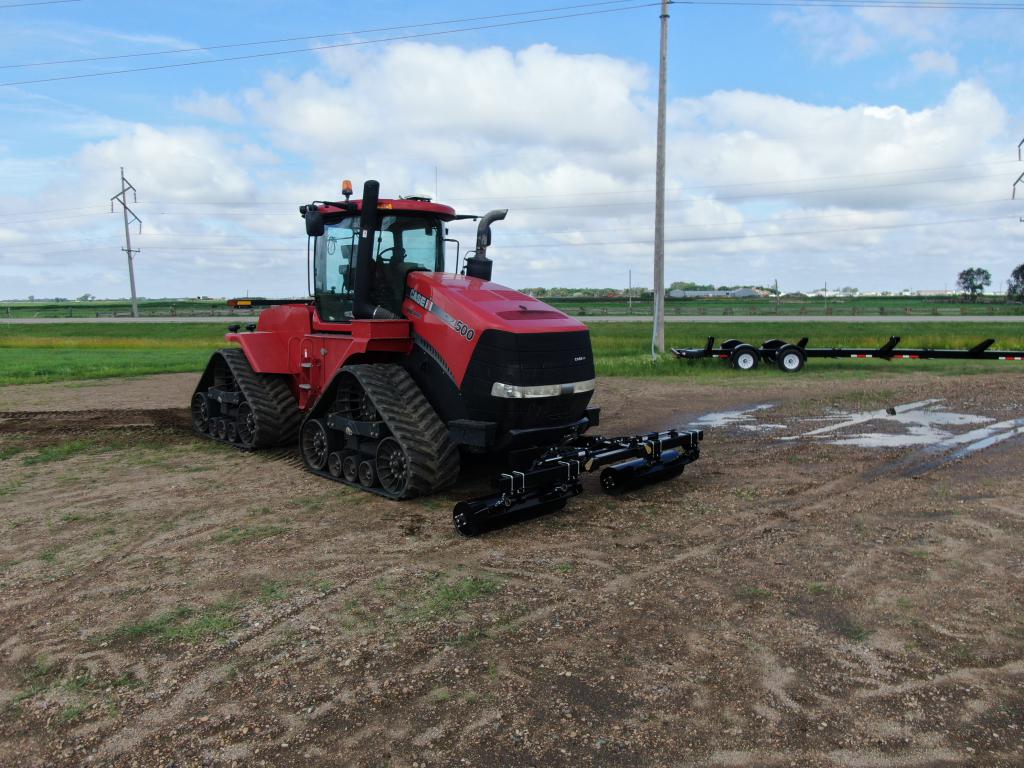

Extend the life of your tractor tires with Lankota's Stalk Roller system for Case® & New Holland® large articulated tractors. The 74-inch wide roller will greatly lessen tire damage done by any crop stalk. The 14-inch diameter rollers crush sharp and abrasive crop residue in front of the tractor tires. The system folds and unfolds hydraulically from the cab. If available, use a separate hyd. remote for these functions or tie them directly in with your implement lift.

*  If your narrow frame tractor has the front weight mount that holds suitcase weights on the side of the tractor, you will need the LANSRCIH24551

Use the following table to determine which kit number to order, based on your tractor series, tire size, and configuration:

NARROW Frame Case IH® & New Holland® 4WD Tractors
Tire Configuration Case IH® Quadtrac 420, 470†, Case IH® Rowtrac 400, 420, 450, 470, 500 Case IH® Wheeled 350, 370, 400, 420, 450, 470 New Holland® SmartTrax II T9.530, T9.565 New Holland® Wheeled T9.390, T9.435, T9.450, T9.480, T9.505, T9.530, T9.560, T9.565
No Weights W/ Weights No Weights W/ Weights No Weights W/ Weights No Weights W/ Weights
Triples
480mm & 520mm		 N/A N/A LANSR20348 LANSR20348W N/A N/A LANSR20348 LANSR20348W
Duals
480mm & 520mm		 N/A N/A LANSR20343 LANSR20343W N/A N/A LANSR20343 LANSR20343W
Duals
620mm & 650mm		 N/A N/A LANSR20348 LANSR20348W N/A N/A LANSR20348 LANSR20348W
Duals
710mm & 800mm		 N/A N/A LANSR20348 LANSR20348W N/A N/A LANSR20348 LANSR20348W
Singles
800mm		 N/A N/A LANSR20343 LANSR20343W N/A N/A LANSR20343 LANSR20343W
Tracks
18" - 36"		 LANSR20343 LANSR20343W N/A N/A LANSR20343 LANSR20343W N/A N/A
• Narrow Frame Tractors with front ballast - order LANSR20343W or LANSR20348W
• The LANSR20343 & LANSR20343W have 52" wide rollers, while the LANSR20348 & LANSR20348W have 74" wide rollers
WIDE Frame Case IH® & New Holland® 4WD Tractors
Tire Configuration Case IH® Quadtrac 450, 470†, 500, 540, 550, 580, 600, 620 Case IH® Wheeled 500, 540, 550, 580, 600, 620 New Holland® SmartTrax II T9.600, T9.645, T9.700 New Holland® Wheeled T9.600, T9.615, T9.645, T9.670, T9.700
No Weights W/ Weights No Weights W/ Weights No Weights W/ Weights No Weights W/ Weights
Triples
480mm & 520mm		 N/A N/A LANSRCNH74 LANSRCNH74W N/A N/A LANSRCNH74 LANSRCNH74W
Duals
480mm & 520mm		 N/A N/A LANSRCNH52 LANSRCNH52W N/A N/A LANSRCNH52 LANSRCNH52W
Duals
620mm & 650mm		 N/A N/A LANSRCNH74 LANSRCNH74W N/A N/A LANSRCNH74 LANSRCNH74W
Duals
710mm & 800mm		 N/A N/A LANSRCNH74 LANSRCNH74W N/A N/A LANSRCNH74 LANSRCNH74W
Singles
800mm		 N/A N/A LANSRCNH52 LANSRCNH52W N/A N/A LANSRCNH52 LANSRCNH52W
Tracks
18" - 36"		 LANSRCNH52 LANSRCNH52W N/A N/A LANSRCNH52 LANSRCNH52W N/A N/A
Wide Frame Tractors with front ballast - order LANSRCNH52W or LANSRCNH74W
The LANSRCNH52 & LANSRCNH52W have 52" wide rollers, while the LANSRCNH74 & LANSRCNH74W have 74" wide rollers

† 470 Quadtrac could be narrow or wide frame, contact your dealer to check build codes

 ** None of these stalk roller kits fit on STX Steiger Tractors
*** Anticipate roughly 10 hours for installation
Installation Instructions
