Description: 4000 Series Case-IH Center Snout, 30" (POLY ONLY)
Fitments: 4206, 4208, 4212, 4406, 4408, 4412
OEM Brand: Case-IH®
OEM Replacement Number(s): 48116083, 84518884, 47468213
Replace the Damaged Poly—Not the Entire Divider Assembly

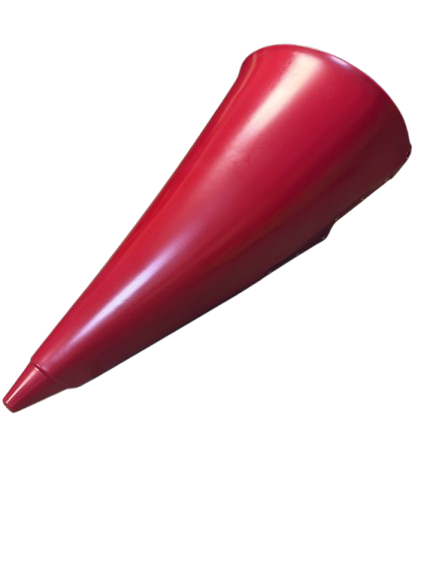

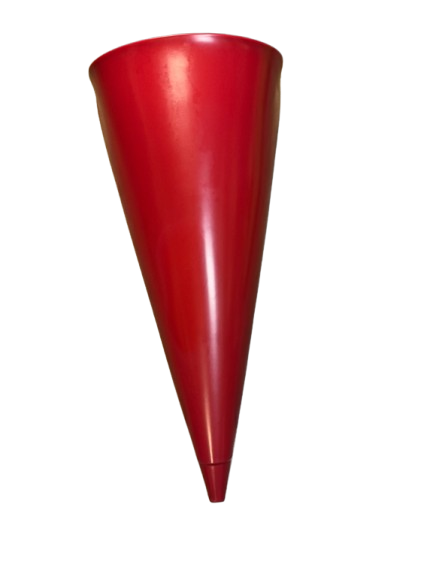

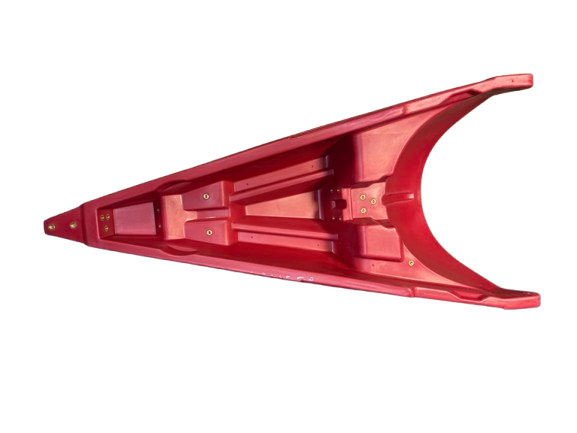

Landbouw 48116083-N is an aftermarket inner crop-divider snout designed for select Case IH® corn heads using OEM crop divider 48116083. It also replaces the earlier 84518884 and 47468213 crop-divider numbers.
Whether you call it an inner crop divider, center snout, divider snout or poly hood, this is the molded red body positioned between the row units. It helps lift and guide standing or down corn toward the gathering chains while maintaining smooth crop flow through the head.
Molded from UV-Protected LLDPE
This crop-divider snout is molded from linear low-density polyethylene (LLDPE) with UV-protected red colorant incorporated into the material.
LLDPE provides the flexibility and impact tolerance needed in demanding harvest conditions. Because the color is molded into the plastic rather than painted onto the surface, there is no painted finish to chip, peel or wear away. The UV-protected colorant also helps protect the snout’s appearance during prolonged outdoor and seasonal exposure.
Product Highlights
-
Aftermarket inner crop-divider snout for select Case IH corn heads
-
Replaces OEM crop divider 48116083
-
Also replaces earlier OEM numbers 84518884 and 47468213
-
Molded from flexible, impact-tolerant LLDPE
-
UV-protected red colorant incorporated into the material
-
Molded-in color with no painted coating to chip or peel
-
Replaces the individual poly body without requiring the complete divider kit
-
Designed to reuse existing divider components when they remain serviceable
Compatible Case IH Corn Heads
Common applications include:
-
4206
-
4208
-
4406
-
4408
-
4412
-
4412F
-
4416
This crop-divider snout is also used with the applicable plastic-update configuration on select:
Fitment can vary by configuration and previous updates. Before ordering, verify that the existing crop-divider body carries OEM number 48116083, 84518884, or 47468213.
Part-Number Cross Reference
-
Landbouw part number: 48116083-N
-
Replaces current OEM number: 48116083
-
Replaces earlier OEM number: 84518884
-
Replaces earlier OEM number: 47468213
-
Related complete OEM divider kit: 47830188
The replacement history is:
47468213 → 84518884 → 48116083 → Landbouw 48116083-N
OEM number 47830188 identifies the larger complete divider kit. That kit includes OEM crop divider 48116083 along with additional mounting and wear components.
What Is Included?
This listing includes:
The point, mount, wear strips, flaps, plates, spring, pins, fasteners and other installation hardware included with complete OEM kit 47830188 are not included.
Existing components may be transferred to the new snout when they are still in serviceable condition. Inspect all mounting, wear and retention components before installation.
Does It Fit a Case IH C508 or C508C?
No catalog-supported interchange has been identified between 48116083 and the inner hood used on the newer Case IH C500 Series.
Current C508 and C508C parts catalogs identify the red inner hood as OEM number 51449695. Do not order 48116083-N for a C508 or C508C unless physical interchangeability has been independently confirmed.
Frequently Asked Questions
Does 48116083-N replace 84518884 and 47468213?
Yes. OEM number 48116083 superseded 84518884, and 84518884 previously superseded 47468213. Landbouw 48116083-N is designed as the aftermarket replacement for this crop-divider body.
Is this the complete 47830188 divider kit?
No. This product replaces the molded crop-divider snout contained within complete OEM kit 47830188. It does not include the point, mount, wear strips, spring, flaps, plates or installation hardware supplied with the complete kit.
Is “crop divider” the same as “snout”?
In this application, the terms crop divider, divider snout, inner snout, center snout and poly hood are commonly used to describe the molded divider body located between the corn-head row units.
How should I verify fitment?
The most reliable method is to match the number on the existing crop-divider body. If your current part is identified as 48116083, 84518884 or 47468213, Landbouw 48116083-N is the corresponding replacement.
Case IH® and associated OEM part numbers are used for identification and fitment reference only. Landbouw is not affiliated with or endorsed by CNH Industrial or Case IH.
